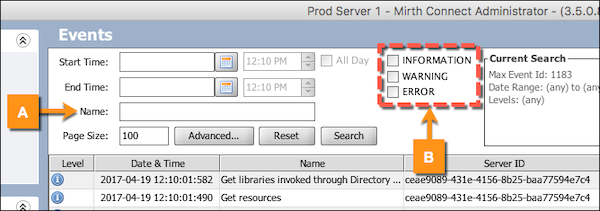

Searching Events

Item	Name	Description
A	Name	The operation name or a short description of the event's warning / error. All events that contain this string somewhere in the name (case-insensitive) will be returned.
B	Level	Check these boxes to search for events with the INFORMATION, WARNING, and/or ERROR levels.

Mirth® Connect by NextGen Healthcare User Guide

Metadata Table

This table shows metadata (such as ID, status, and timestamps) about the messages that match your current search window. The number of messages shown in the table at once is determined by the Page Size option (see Search Messages for additional information about the Page Size option). When you first enter the Message Browser, by default the latest 20 messages (by ID) appear. Messages are organized by ID, and multiple rows for each connector message appear in the table, depending on your search criteria. Add a Column to the Metadata Table Metadata Table Columns Custom Metadata Columns Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

Message Browser Tasks

The following context-specific tasks are available from the Message Browser View: Task Icon Task Name Description Refresh Updates messages within the current search page. Note that this is different from selecting the Search button. The Search operation performs a completely new search without a Max Message Id and resets the count and pagination options. The Refresh task re-performs the search using the existing Max Message Id, so that no new messages since the last Search will be included. Also, it preserves the current page being viewed instead of reverting back to the first page. Send Message Sends a message to the current channel. For additional information, see Send Message. Import Messages Imports messages from a file. Note that imported messages are only directly stored in the channel's message data, and not actually processed through the channel. For additional information, see Import Messages. Export Results Exports all messages that match the current search criteria. Note tha

Mirth® Connect by NextGen Healthcare User Guide

From the Channels View

Select the Channels link in the Mirth Connect task panel on the upper-left side of the window. Select a channel where the messages you would like to view reside. Select the View Messages task in the left task list. For additional information, see Channel Tasks. This section is separated into the following topics: Metadata Table Message Content Tab Mappings Tab Errors Tab Attachments Tab Search Messages Message Browser Tasks Parent topic: Navigation

Mirth® Connect by NextGen Healthcare User Guide

Event Tasks

The following context-specific tasks are available from the Events View: Task Icon Task Name Description Refresh Updates events within the current search page. Note: Note that this is different from selecting the Search button. The Search operation performs a completely new search without a Max Event Id and resets the count and pagination options. The Refresh task re-performs the search using the existing Max Event Id, so that no new events since the last Search will be included. Also, it preserves the current page being viewed instead of reverting back to the first page. Export All Events Exports all events to a file in the Application Data Directory. For additional information, see Export All Events Export All Events Parent topic: Events View

Mirth® Connect by NextGen Healthcare User Guide

Event Attributes Table

The attributes table at the bottom of the Event Browser shows more detailed information about a particular event. This will typically include the channel ID / name, if the event is a channel operation like start/stop/deploy. If the event is an error, the attributes table will typically show any exception associated with the event. If an attribute value is too long and is truncated in the table, you can double-click the table row to display the value in a separate dialog: Parent topic: Events View

Mirth® Connect by NextGen Healthcare User Guide

Search Messages

The Message Browser supports a wide range of searches, from a general search using a few filters, to finely grained searches using many filters and including the Advanced… window. The Advanced window enables you to enter various IDs, content, and metadata filters to fine-tune your searches Image of the Message Browser where you can search messages Message Search Options Message search options enable you to perform searches based on specific parameters. Advanced Search Filter Parent topic: Message Browser View
