Search Messages

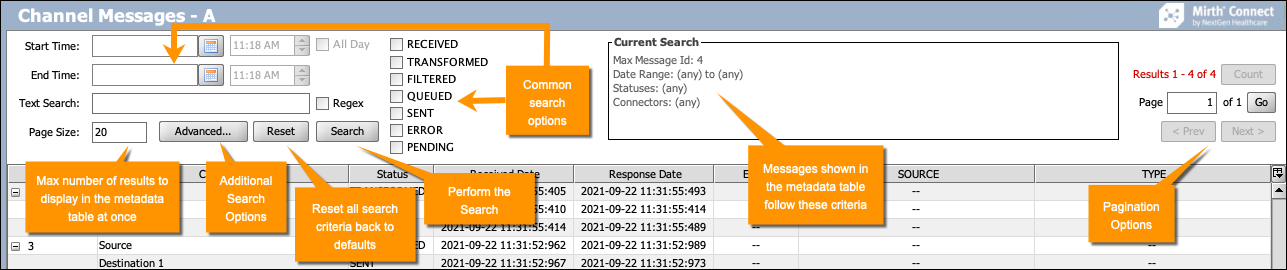

The Message Browser supports a wide range of searches, from a general search using a few filters, to finely grained searches using many filters and including the Advanced… window. The Advanced window enables you to enter various IDs, content, and metadata filters to fine-tune your searches

Image of the Message Browser where you can search messages

Message Search Options
Message search options enable you to perform searches based on specific parameters.
Advanced Search Filter

Search Messages

Mirth® Connect by NextGen Healthcare User Guide

Metadata Table

This table shows metadata (such as ID, status, and timestamps) about the messages that match your current search window. The number of messages shown in the table at once is determined by the Page Size option (see Search Messages for additional information about the Page Size option). When you first enter the Message Browser, by default the latest 20 messages (by ID) appear. Messages are organized by ID, and multiple rows for each connector message appear in the table, depending on your search criteria. Add a Column to the Metadata Table Metadata Table Columns Custom Metadata Columns Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

Message Content Tab

The Messages tab in the Message Browser shows the actual content of the message at various states as it processed through the selected connector message. View Message Content Message Content Types Formatting Messages Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

Navigation

From the Dashboard From the Channels View From the Dashboard From the Channels View Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

Message Browser Tasks

The following context-specific tasks are available from the Message Browser View: Task Icon Task Name Description Refresh Updates messages within the current search page. Note that this is different from selecting the Search button. The Search operation performs a completely new search without a Max Message Id and resets the count and pagination options. The Refresh task re-performs the search using the existing Max Message Id, so that no new messages since the last Search will be included. Also, it preserves the current page being viewed instead of reverting back to the first page. Send Message Sends a message to the current channel. For additional information, see Send Message. Import Messages Imports messages from a file. Note that imported messages are only directly stored in the channel's message data, and not actually processed through the channel. For additional information, see Import Messages. Export Results Exports all messages that match the current search criteria. Note tha

Mirth® Connect by NextGen Healthcare User Guide

Message Browser View

The Message Browser allows you to view and search historical and actively processing messages for your channels. It also has options for importing, exporting, removing, and reprocessing messages. Navigation Metadata Table Message Content Tab Mappings Tab Errors Tab Attachments Tab Search Messages The Message Browser supports a wide range of searches, from a general search using a few filters, to finely grained searches using many filters. Message Browser Tasks Parent topic: Monitor Views

Mirth® Connect by NextGen Healthcare User Guide

Advanced Search Filter

Select the Advanced... button in the message browser search pane to view the Advanced Search Filter. (See Option E in Message Search Options) Item Name Description A Connectors Table Use this table to include only certain connectors in the search criteria. The Id column refers to the metadata ID of the connector, where the Source connector is always 0, and destination connectors have metadata IDs greater than zero. The Current Connector Name column shows the current name of each connector. Even if a destination is renamed, the metadata ID remains static, and is used for the search. The Deleted Connectors row refers to historical connector messages associated with destinations that were deleted. B Select/Deselect All Select this checkbox to select/deselect all connectors in the Connectors Table. C Message Id Enter the minimum and maximum message IDs to include in the search. This could refer to the current ID (Message Id), the original ID of a reprocessed message (Original Id), or the o
