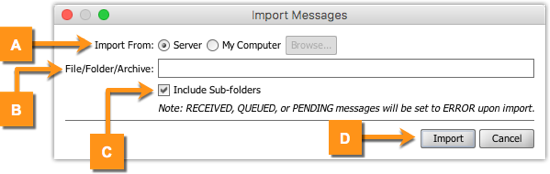

Import Messages

Item	Name	Description
A	Import From	If Server is chosen, messages are imported from the server file system. If My Computer is chosen, messages from the machine running the Administrator are imported into the server. Select Browse to select a file or folder from your local computer.
B	File/Folder/Archive	Select a specific message XML file, a folder containing message XML files, or a zip/tar.gz/tar.bz2 compressed archive containing message XML files.
C	Include Sub-folders	If checked, all sub-directories within the selected folder are searched recursively for messages to import.
D	Import	Select Import to perform the import operation.

Mirth® Connect by NextGen Healthcare User Guide

Metadata Table Columns

Column Description ID The unique ID of the event in the database. This column is hidden by default. For additional information, see Working With Tables. Level An icon indicating the event's severity level ( Information, Warning, or Error) . Date & Time The date and time the event was logged. Name The name of the logged operation, or a description of the warning/error. Server ID The unique ID of the server from which the event was logged. User If the event originated from a user action, this will be both the user ID and user name. If no user is associated with the event, it will show 0 (System). Outcome For user requests and server tasks, this icon indicates whether the action was successful or not. For example a failed user login attempt will show a failure icon. IP Address For user requests, the IP address of the originating client. Channel ID - Message ID If the event occurs in a specific channel, the channel ID will be logged. If the event occurs due to a specific message, a dash wi

Mirth® Connect by NextGen Healthcare User Guide

Events Table

This table shows metadata (ID, timestamp, operation name) about each event that has been stored by the server. The Page Size option dictates the number of events shown in the table simultaneously (for additional information, see Searching Events) . When you first enter the Event Browser, by default the latest 100 events appear. For general information about working with tables in Mirth® Connect, see Working With Tables. Metadata Table Columns PHI Events Parent topic: Events View

Mirth® Connect by NextGen Healthcare User Guide

Export Results

You can export channel messages using the Export Results window. When you select the Export Results task, an options window opens. Note that all messages matching the current search criteria are exported, not only the ones shown on the current page. Export Results window used to export channel messages Item Name Description A Content The type of content used to export from the messages. Note that an XML serialized message is the only type that can be re-imported, and it includes all content across the message in a single XML file. B Encrypt If checked, the exported message content is encrypted with the server's encryption key. C Include Attachments If checked and the content type is set to XML serialized message, the exported file contains all attachments associated with the message. D Compression When compression is enabled, the files and folders created according to the file pattern are made into a compressed file in the root path. The following compression types are supported: ZIP t

Mirth® Connect by NextGen Healthcare User Guide

Message Browser Tasks

The following context-specific tasks are available from the Message Browser View: Task Icon Task Name Description Refresh Updates messages within the current search page. Note that this is different from selecting the Search button. The Search operation performs a completely new search without a Max Message Id and resets the count and pagination options. The Refresh task re-performs the search using the existing Max Message Id, so that no new messages since the last Search will be included. Also, it preserves the current page being viewed instead of reverting back to the first page. Send Message Sends a message to the current channel. For additional information, see Send Message. Import Messages Imports messages from a file. Note that imported messages are only directly stored in the channel's message data, and not actually processed through the channel. For additional information, see Import Messages. Export Results Exports all messages that match the current search criteria. Note tha

Mirth® Connect by NextGen Healthcare User Guide

Advanced Search Filter

Select the Advanced... button in the message browser search pane to view the Advanced Search Filter. (See Option E in Message Search Options) Item Name Description A Connectors Table Use this table to include only certain connectors in the search criteria. The Id column refers to the metadata ID of the connector, where the Source connector is always 0, and destination connectors have metadata IDs greater than zero. The Current Connector Name column shows the current name of each connector. Even if a destination is renamed, the metadata ID remains static, and is used for the search. The Deleted Connectors row refers to historical connector messages associated with destinations that were deleted. B Select/Deselect All Select this checkbox to select/deselect all connectors in the Connectors Table. C Message Id Enter the minimum and maximum message IDs to include in the search. This could refer to the current ID (Message Id), the original ID of a reprocessed message (Original Id), or the o

Mirth® Connect by NextGen Healthcare User Guide

Archive Settings

Item Name Description I Enable Archiving Determines whether message / attachment data is saved to disk before being pruned. Select Yes to save message / attachment data to disk prior to being pruned. Select No to perform a prune without saving message / attachment data. J Archiver Block Size The number of messages that will be cached by the archiver. Increase this value to improve performance. Decrease this value to reduce memory usage. This value must be between 1 and 1,000. The recommended value for most servers is 50. K Content The type of content that is exported from the messages. Note: XML serialized message is the only type that can be re-imported, and it includes all content across the message in a single XML file. Encrypt: Check Encrypt to encrypt the exported message content with the server's encryption key. Include Attachments: Check Include Attachments to include all attachments associated with the message in your exported file. Note that the content type must be set to XML
