Administrator Settings Tab

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Settings link in the Mirth® Connect task pane on the top-left: side of the window. This section is separated into the following topics: Server Settings Tab Administrator Settings Tab Tags Settings Tab Configuration Map Settings Tab Database Tasks Settings Tab Resources Settings Tab Data Pruner Settings Tab Settings Tasks Parent topic: Settings View

Mirth® Connect by NextGen Healthcare User Guide

Database Tasks Settings Tab

The Database Tasks Settings tab shows you all cleanup or optimization tasks for the internal Mirth® Connect database. Occasionally in new versions of Mirth® Connect certain things change in the underlying database but depending on the implications those changes are not always automatically performed when you upgrade. Old tables are left behind and no longer used, but those tables are not automatically deleted in case you want to keep them or back them up first. The Database Tasks Settings tab shows you all cleanup or optimization tasks for the internal Mirth® Connect database. If no tasks show up in the table, then that means your database is up-to-date. Database Tasks Table Columns Affected Channels Table Running a Database Task Parent topic: Settings View

Mirth® Connect by NextGen Healthcare User Guide

Resources Settings Tab

The Resource Settings tab lets you configure shared objects or libraries that can be used across the entire server or on specific channels and connectors. Resources are shared services that can be used in specific channels and connectors or in other places throughout the Mirth® Connect server. They may include custom Java libraries to use within scripts or services to handle outbound connections. Image of the Resource Settings tab. Resources Table Columns Tasks Reload Resource Directory Resource Using Resources in Channels/Connectors Parent topic: Settings View

Mirth® Connect by NextGen Healthcare User Guide

User Preferences

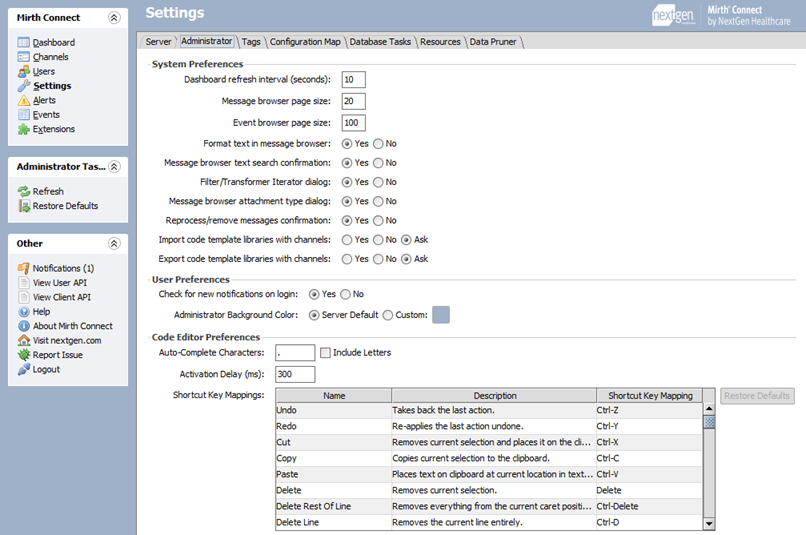

The User Preferences section enables you to customize certain system behaviors for individual users. The following image shows the User Preferences section of the Administrator Settings tab, followed by descriptions of the items displayed. Note: Settings in this section are specific to the user currently logged on the current server. Item Name Description K Check for new notifications on login Checks for notifications from NextGen (such as announcements, available updates) relevant to this version of Mirth Connect whenever the user logs on. L Administrator Background Color If Server Default is selected, the background color chosen on the Server Settings Tab is used. If Custom is selected, the color displayed in the box next to the checkbox is used instead. Parent topic: Administrator Settings Tab

Mirth® Connect by NextGen Healthcare User Guide

Settings View

The Settings view encompasses a wide variety of management settings and tasks for your Mirth® Connect server. Some of the settings are channel-specific (such as channel tags), and others are more general (such as default email settings). Image of the Settings view. Navigation Server Settings Tab The Server Settings tab shows general global settings that pertain to the server or default channel properties. Administrator Settings Tab The Administrator Settings tab shows settings specific to the client machine running the Mirth® Connect Administrator. Tags Settings Tab The Tags tab provides a general management view for all channel tags configured on your server. Configuration Map Settings Tab The Configuration Map tab enables you to edit the entries in the configuration map for the current server. Database Tasks Settings Tab The Database Tasks Settings tab shows you all cleanup or optimization tasks for the internal Mirth® Connect database. Resources Settings Tab The Resource Settings ta

Mirth® Connect by NextGen Healthcare User Guide

Code Editor Preferences

Code Editor preferences control the behavior of the code editor in the Mirth® Connect Administrator. The following image shows the options available in the Code Editor Preferences section of the Administrator Settings tab, followed by descriptions for the items. Item Name Description M Auto-Complete Characters The auto-completion popup is triggered after any of these characters are typed. If the Include Letters check box is checked, auto-completion is also triggered after any letter (a-z) is typed. N Activation Delay (ms) The amount of time to wait after typing an activation character before opening the auto-completion popup menu. O Shortcut Key Mappings This table shows common code editor actions and their corresponding shortcut key sequence. To change the key mapping for any action, double-click the Shortcut Key Mapping column, select Escape to clear the current value, enter the new key sequence, and select the Enter key. The Restore Defaults button restores all shortcut key mappings
