Using M3 with Multi-factor Authentication
In order for M3 to monitor a Connect server with the multi-factor authentication extension enabled, the following steps are needed:

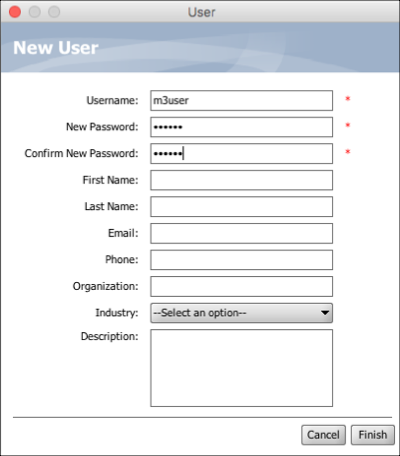

Create a dedicated user for M3 in
Mirth® Connect

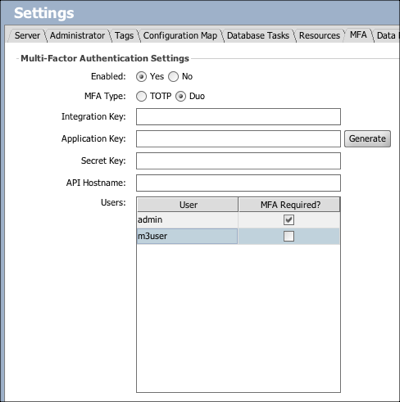

Uncheck the "
MFA Required?
" checkbox in the MFA settings panel.
In M3, connect to the server using the dedicated user account that was created in Step 1.
