Configure Payment Processing for TSYS Express with No Device

The following guidelines are applicable when configuring payment processing with no device:
  • You can add only one no device configuration to a practice.
  • You can add up to 20 gateway IDs with a no device configuration.
  • You can add a no device configuration to each user and add it to their User Preferences.
For details about user name and password, see Set Up Enterprise Preferences for Credit Card Processors.
  1. In NextGen® Enterprise PM, select Admin > Preferences > Practice.
    The Practice Preferences window opens.
  2. From Preference List, select Payment Processing.
  3. In Credit Card Processor, select TSYS-Express.

  4. Select Gateway IDs.

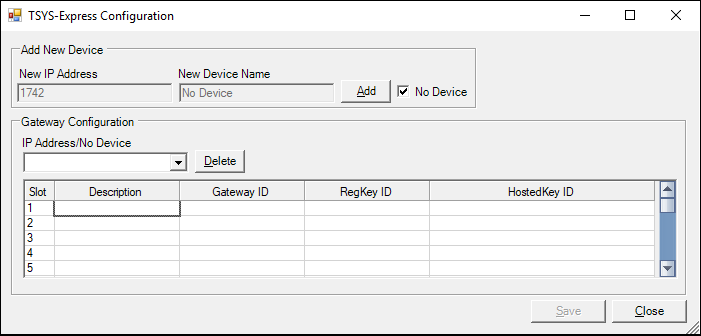

    The TSYS-Express Configuration window opens.
  5. Select the No Device check box and select Add.

    The following fields get populated:
    FieldPopulated With
    New IP AddressA system generated four-digit unique no device ID appears in this field.
    New Device NameThe name No Device appears in this field.
    IP Address/No DeviceThe system generated no device unique ID appears in the list.
  6. In the IP Address/No Device list, select the no device unique ID.
  7. Enter values in the Description, Gateway ID, RegKey ID, and HostedKey ID fields.
  8. Select Save.
