Create GE Resting ECG Reports

NextGen® Enterprise EHR Help

Create GE Ambulatory Blood Pressure Reports

The following procedure assumes that you have configured the GE TONOPORT monitor with the appropriate protocol in CardioSoft, connected the monitor to the patient, and collected required data. Note: For more information on GE TONOPORT monitor setup and usage, refer to the appropriate GE TONOPORT Operator's Manual. For more information on how to use GE CardioSoft, refer to the GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Access the IEM. Select Acquire Report and select GE CardioSoft Ambulatory Blood Pressure Measurement. The GE CardioSoft application starts and displays the Acquisition window. On the Acquisition window: Connect the monitor to the system and select the Connect button. The Acquisition window opens and displays the memory status of the ambulatory blood pressure monitor. Select the Download Data button to transfer data to the system. The Test Summary window opens.

NextGen® Enterprise EHR Help

Create GE Stress ECG Reports

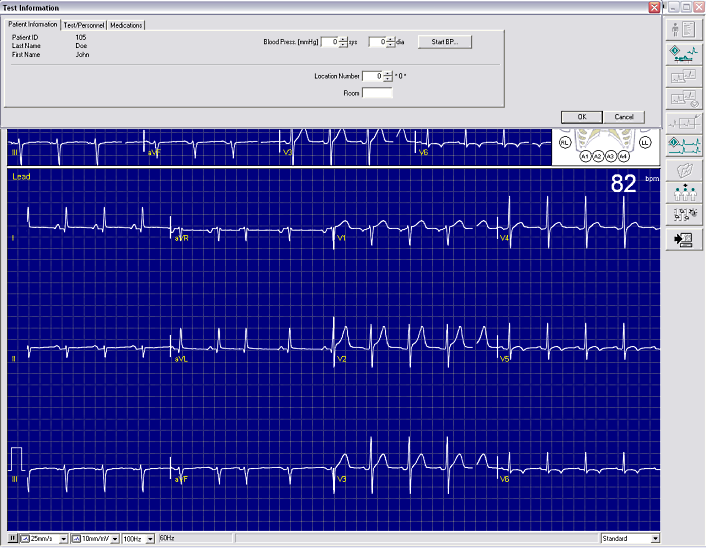

Before you start recording, ensure that the equipment is connected to the PC. For more information on how to use GE CardioSoft, refer to the appropriate GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. Select Acquire Report and select GE CardioSoft Stress ECG. The GE CardioSoft application starts and displays the Test Information window. On the Test Information window: For each tab, enter or verify all relevant information and select OK. Before the test starts: Check the applied electrodes and verify the signal quality in all leads. If needed, configure and select appropriate settings and protocols. Select the F1: pretest button to start the Pretest phase. In the Pretest phase: Select the 12SL analysis button to acquire and analyze a baseline ECG. Select the F1: pretest button to advance to the next stage in the selected protocol. After the la

NextGen® Enterprise EHR Help

Create GE Spirometry Reports

Before you start recording, ensure that the equipment is connected to the PC. For more information on how to use GE CardioSoft functionality, refer to the GE CardioSoft Operator's Manual. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, load a patient and select a location and provider. Open the Integrated Equipment Module. Select Acquire Report and select GE CardioSoft Spirometry. The GE CardioSoft application starts and displays the Test Information window. Before the test starts: Configure and select the appropriate settings as needed. Explain the test procedure to the patient. On the Test Information window: For each tab, enter or select all relevant information and select OK. If you are performing a Flow-Volume measurement: Select the Start Test button. If prompted, select OK to confirm that the patient is not yet breathing through the sensor. Have the patient exhale and inhale as directed. Select the Stop Test button. Repeat the test as needed. Select Best

NextGen® Enterprise EHR Help

Delete GE Reports

GE reports are stored in the GE CardioSoft database, while references to the reports are stored in NextGen® database. As a result, you must delete the report and associated references from both places. For more information on how to use GE CardioSoft, refer to the GE CardioSoft Operator's Manual. Open the Integrated Equipment Module From the IEM grid, select any GE report and select the Red X (Delete) button on the top toolbar. A confirmation message appears. Select Yes to confirm the deletion. For more information on how to use GE CardioSoft, refer to the GE CardioSoft Operator's Manual. Parent topic: GE CardioSoft Equipment

NextGen® Enterprise EHR Help

View and Modify GE Reports

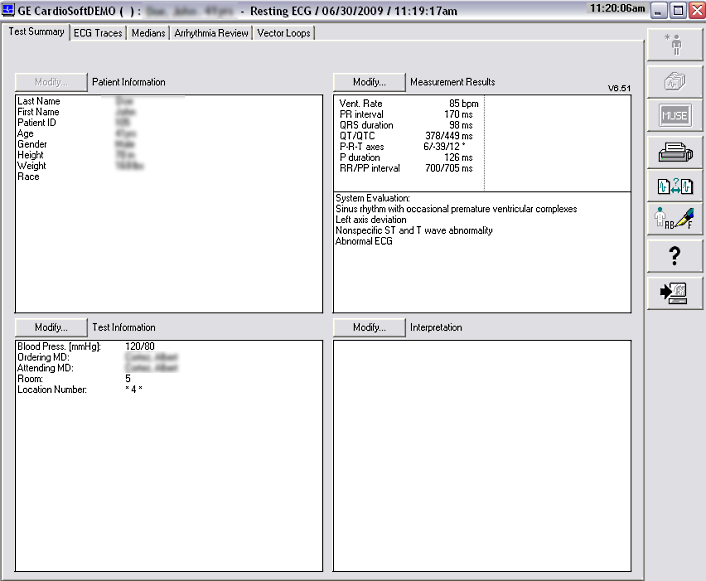

For more information on how to use GE CardioSoft, refer to the GE CardioSoft Operator's Manual. Access the Integrated Equipment Module. Select a GE CardioSoft Resting ECG, GE CardioSoft Stress ECG, GE CardioSoft Spirometry, or GE CardioSoft Ambulatory Blood Pressure report from the IEM grid. Select View Report. The report opens in a new GE CardioSoft window. Use the Modify buttons to edit information as needed. Close the GE CardioSoft window to return to the IEM. Parent topic: GE CardioSoft Equipment

NextGen® Enterprise EHR Help

Create Midmark ECG Reports

Before you begin Before you start recording, ensure that the equipment is connected to the PC. Prepare the patient for the test as needed. In NextGen® Enterprise EHR, open a patient chart and select a location and provider. Open the Integrated Equipment Module From the Acquire Report list, select Midmark ECG. The live ECG window opens. Recording runs for 10 seconds and then stops. Select your name in the Reviewed By list. Analyze the clinical data in the report. Select Save to save the report and return to the Equipment Reports pane in EHR. A new Midmark Resting ECG report appears in the IEM grid and an (Equipment Report) indicator appears in the History toolbar under the encounter. Note: If the Store PDF Report on Equipment Report Modify Universal Preference is enabled, a PDF of the equipment report is generated and attached to the patient's encounter in the History toolbar. Refer to Fax Equipment Report PDFs from PAQ. For more information on Midmark ECG functionality, refer to the ap
