Create an Imaging Component Toolbar

You can create an Imaging Component toolbar for easier access to imaging components.

  1. Access the Imaging module.
  2. Right-click the displayed image, or from the Main menu select one of the following:
    • Imaging Components ToolBars > Current Toolbars
    • Imaging Components ToolBars > My Preferred Toolbars
    The Imaging Component ToolBar Selection window opens.

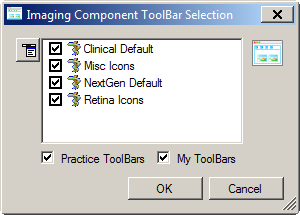

    Imaging Component ToolBar Selection

  3. Do one of the following:
    • In the window, right-click, and then select New.
    • Select the Open Menu button, and then select New.
    The Imaging Component ToolBar Builder window opens.

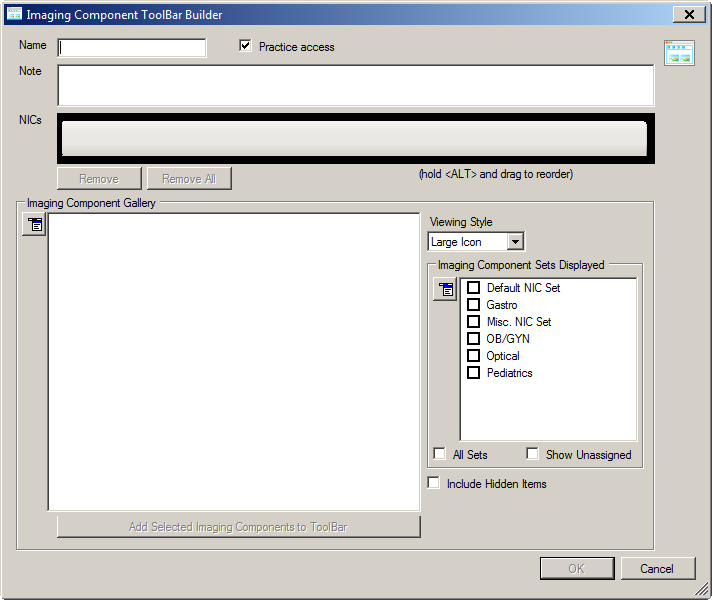

    Imaging Component ToolBar Builder

  4. Enter a name for the Imaging Component toolbar.
  5. If necessary, add a description or additional information for the toolbar in the Note field.
  6. Select or clear any combination of the following check boxes to display the imaging components in the Imaging Component Gallery:
    • Select a specific imaging component set check box from the Imaging Component Sets Displayed list.
    • Select the All sets check box to display all imaging components.
    • Select the Show unassigned to display unassigned imaging components.
    • Select the Include hidden items check box to display hidden imaging components.
  7. In the Imaging Component Gallery, select the imaging component you want to add to the toolbar you are creating. To select multiple imaging components, select CTRL key on your keyboard.
  8. Select the Add Selected Imaging Components to ToolBar button.
    The image is added to the NICs field.
  9. To remove images from the toolbar, select an image in the NICs field, and then select Remove. To remove all images, select Remove All.
  10. To change the order of the imaging components in the NICs field, select ALT key on your keyboard and drag the imaging components to place them.
  11. Do one of the following:
    • To make the toolbar available for everyone in your practice, select the Practice access check box.
    • To make the toolbar available only for your personal use, clear the Practice access check box.

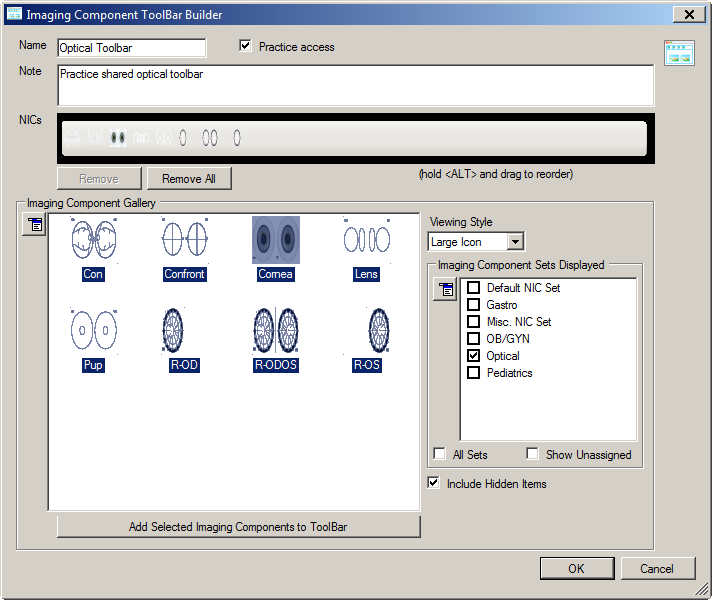

      Imaging Component ToolBar Builder

  12. Select OK.
    The Imaging Component ToolBar Selection window adds the name of the new toolbar to the list.
