To enable configuration for snomed visit type, you must enable the Configure button.You can enable the Configure button in the Step 2 Add/Edit List Items panel in the Custom DBPicklist Setup template.
- Open the Custom DB Picklists template.
- In the Custom DB Picklists top grid, click SNOMED_Visit_Type.
The selected DB picklist appears in the DBPicklist Name field.
- Click Update.

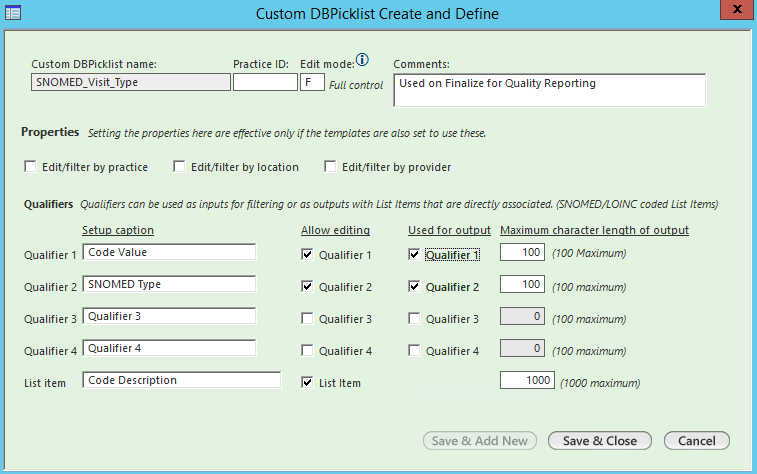

The Custom DBPicklist Create and Define template opens.
- In the Qualifiers section, in the Used for output column, select Qualifier 1 and Qualifier 2 check boxes.
- In the Maximum character length of output column, enter maximum character limit for Qualifier 1, Qualifier 2, and List item in the corresponding fields.
Note: The maximum character limit for all three fields should be more than zero but no more than 100.
- Click Save & Close.
The Configure button has been enabled in the Step 2 Add/Edit List Items panel.
