Open the Flowsheets Setup Practice Template

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Configure Flowsheets for Metrics

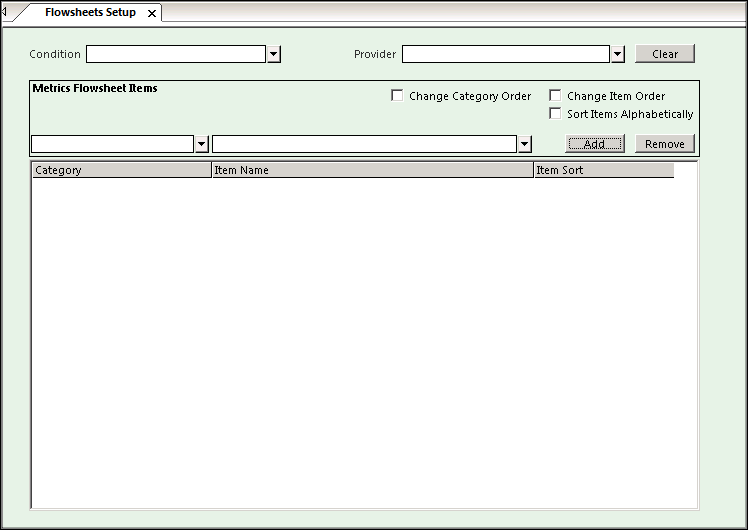

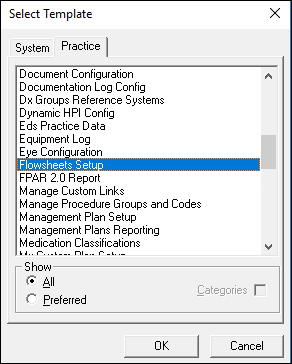

You can configure the existing flowsheet for the metrics using Flowsheets Setup template. Open NextGen® Enterprise EHR. Open the Flowsheets Setup template. Flowsheetss Setup In the Condition field, select a condition guideline, and then select OK. The default flowsheet setup at the practice level for the guideline displays in the Metrics Flowsheet Items grid. In the Provider field, select a provider, and then select OK, if appropriate. Note: Selecting a provider creates this flowsheet setup at the provider level only. To add a metric to the flowsheet: Select the field above the Category column and then select an option. Select the field above the Item Name column and select an option. Select Add. The new metric appears in the grid. Select Yes to save changes and close the template. Note: To remove a metric from the flowsheet, you can select the appropriate row in the Metrics Flowsheet Items grid, and select Remove. Parent topic: Metrics See also Open the Flowsheets Setup Practice Templ

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Add a New Flowsheet Setup

Access the Flowsheets Setup practice template . Select a Condition by clicking the Condition field down-arrow and selecting a value from the list that opens . Click OK. Select a Provider by clicking the Provider field down-arrow and select a provider name from the Rendering Provider list (that is, list of providers currently in the system), if required. Click OK. Note: Selecting a provider creates a flowsheet setup at the provider level for the provider selected. Not selecting a provider creates a flowsheet setup at the practice level for all providers within the practice. In the Metric Flowsheet Items section, select details for a new metric to add to the flowsheet: Click the left field and select an appropriate category for the new flowsheet item from the list that opens. Click the right field and select the name of the new flowsheet item from the list that opens. Click Add to add the new metrics flowsheet item to the grid. Repeat steps 4 and 5 until you have finished adding items to

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Sort the Metrics Flowsheet Items

You can change the order or sort the metrics flowsheet items using Flowsheets Setup template. Open NextGen® Enterprise EHR. Open the Flowsheets Setup template. Flowsheet Setup In the Condition field, select a condition guideline, and then select OK.The default flowsheet setup at the practice level for the guideline displays in the Metrics Flowsheet Items grid. To change the order of the categories listed in the Metrics Flowsheet, do the following: Select the Change Category Order checkbox.The Metrics Flowsheet Items grid displays the categories currently setup in the flowsheet. Select the category row that you want to move. Select the row to move the category.The grid refreshes to display all metrics flowsheet items based on the new order of the categories and their Item Sort value. Change Category Order checkbox is automatically cleared. To change the order items within the categories in the metrics flowsheet, do the following: Select the Change Item Order checkbox.The Metrics Flowshe

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Setup Flowsheets for Metrics Panel in Care Guidelines

The Flowsheets Setup practice template is used to select metrics to track for patients in flowsheet format that appear in the Metrics panel on the Care Guidelines template. The Flowsheets Setup practice template can be used by all specialties. This document provides instructions for configuring metrics flowsheets on the Flowsheets Setup practice template. Flowsheet setups are included with NextGen Adaptive Content Engine (formerly NextGen KBM) the system, configured at the practice level. These flowsheet setups can be modified and new setups added. Flowsheets can also be setup by provider. See also: Add a New Flowsheet Setup Remove an Item from a Flowsheet Setup Rearrange the Order of Items in a Flowsheet Setup Open the Flowsheets Setup Practice Template You can create a flowsheet setup or configure the existing flowsheet. Add a New Flowsheet Setup Remove an Item from a Flowsheet Setup Rearrange the Order of Items in a Flowsheet Setup View Metrics Flowsheets on the Care Guidelines Temp

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

Metrics

You can view the metrics for a patient and can be configured using the Flowsheets Setup template. In the Metrics panel you can view metrics for a patient, lab and vital signs values, for up to 10 rows of data. Data appears in a flowsheet format, you can be configure it on the Flowsheets Setup practice template. The Metrics data grid is view-only. Metrics When you first open the Care Guidelines grid view template and expand the Metrics panel, it appears blank. Flowsheets do not appear until you select a guideline listed in the left pane in Outstanding Guidelines. Note: A guideline should have metrics configured in order to display flowsheets. Flowsheets in the Metrics panel are configured on the Flowsheets Setup practice template. Default flowsheet is setup at the practice level and comes shipped with the system, and can be edited or added. You can also setup the flowsheets. Open the Flowsheets Setup Practice Template You can create a flowsheet setup or configure the existing flowsheet.

NextGen® Adaptive Content Engine Help Enterprise 8.3.1

View Metrics Flowsheet

Metrics flowsheet appear in the Metrics panel when you select a condition listed on the Care Guidelines template. To display conditions for care guidelines that are activated for the patient, do the following: Open NextGen® Enterprise EHR. Select the Care Guidelines link on any of the main template. The Care Guidelines Paged View template opens. In the Care Guidelines panel, select the Grid View link. The Care Guidelines grid view template opens. Select a condition listed in the left side pane in Outstanding guidelines. Metrics corresponding to the conditions selected appear in the panel in flowsheet format. Metrics Parent topic: Metrics
