Add a Template to the EM Table List
On the
E&M Bullets and Field Mapping
system template, navigate to the
EM TABLE LIST
section or click the
Page 4 (Tables)
link.

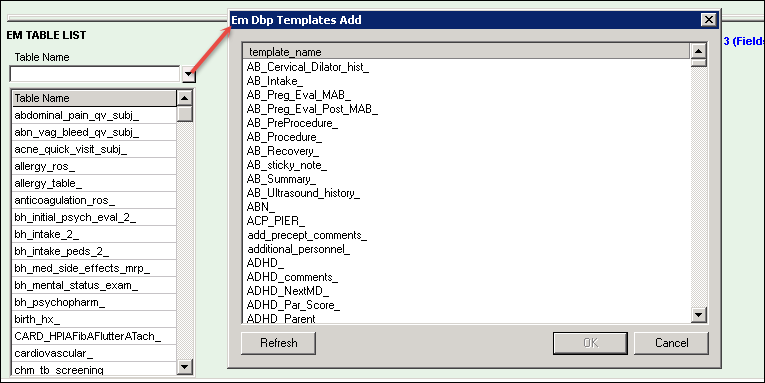

Click the
Table Name
field.
A picklist appears with the list of available templates.
Select the applicable template, by clicking the template name.
Click the
OK
button.

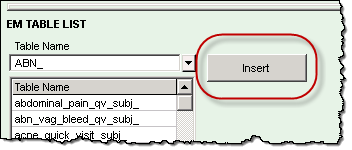

Click the
Insert
button to add the template.
Once the template is added, the field mappings can be applied in the
EM BULLET ID - FIELD MAPPING
section.
When you have completed the changes, click the
Apply Changes
button to activate the changes.
Add a Template to the EM Table List
NextGen® Adaptive Content Engine Help Enterprise 8.3.1
Delete a Template from the EM Table List
On the E&M Bullets and Field Mapping template, navigate to the EM TABLE LIST or Page 4 (Tables) section. In the Table Name grid, highlight the template, you want to delete. When a template is highlighted in the grid, a Delete button appears. Click the Delete button. When you have completed the changes, click the Apply Changes button to activate the changes. Parent topic: EM Table List
NextGen® Adaptive Content Engine Help Enterprise 8.3.1
EM Table List
The EM TABLE LISTS or Page 4 (Tables) displays a listing of all templates that are in the list of tables on Page 3 (Fields). This section allows you to add or delete templates from the EM TABLE LISTS. Add a Template to the EM Table List Delete a Template from the EM Table List Parent topic: Evaluation and Management Bullets and Field Mapping System Template
NextGen® Adaptive Content Engine Help Enterprise 8.3.1
Modify an EM Mapping
On the E&M Bullets and Field Mapping system template, access the EM FIELD MAPS section. Select the applicable mapping row from the data grid. Click the EM Bullet ID field or the Specific Value field. Select the new value from the picklist and click the Update button. The selected mapping appears in the data grid, with the modified value. When you have completed the changes, click the Apply Changes button. Parent topic: EM Field Maps Section
NextGen® Adaptive Content Engine Help Enterprise 8.3.1
Delete an EM Mapping
On the E&M Bullets and Field Mapping system template, navigate to the EM FIELD MAPS or (Page 3 Fields) section. Select the applicable mapping row in the Edit Fields data grid. Note: You have to select the EM Type and the Table fields whose mapping is to be deleted, if it is not already selected. Click the Delete button. The mapping no longer appears in the data grid. When you have completed the changes, click the Apply Changes button to activate the changes. Parent topic: EM Field Maps Section
NextGen® Adaptive Content Engine Help Enterprise 8.3.1
Access the E&M Bullets and Field Mapping System Template
From the File menu, select System \ Practice Template. The Select Template window appears. In the Show section, select All to see a list of system templates. To access the E&M Bullets and Field Mapping system template: Double-click E&M Bullets and Field Mapping. Select E&M Bullets and Field Mapping and then click OK. The E&M Bullets and Field Mapping template appears. Parent topic: Evaluation and Management Codes
NextGen® Adaptive Content Engine Help Enterprise 8.3.1
EM Field Maps Data Grid
The description of fields listed in the EM Field Maps data grid is: Field Description Table Name The table or template name selected in the Table field just above the data grid. Field Name The native field on the selected table or template. Any Val Gives Point The assigned field value (for example 0 or 1, y or no, etc.) Specific Value The assigned value from a pick list selection. Bullet ID The mapped bullet identifier. When selecting a mapping on the EM BULLET ID – FIELD MAPPING data grid, the default mapping for the field type is added to the Edit Fields data grid in the EM FIELD MAPS section of the template. In this example, the MS_All option in the EM Type field and the pe_cardiovascular option in the Table field are selected. Note: : The fields for a table that do not have a mapping do not appear in the EM FIELD MAPS data grid. Parent topic: EM Field Maps Section
