Source Tab

Mirth® Connect by NextGen Healthcare User Guide

Destinations Tab

The Destinations tab is where destination connectors are configured. This includes the destination connector properties, the destination filter / transformer scripts, and the response transformer scripts. From this tab you can rename / reorder / enable / disable / clone destinations, and decide which ones belong in separate destination chains. Imageof the Destinations tab when editing a channel. Configuration of destination connectors is separated into the following sections: Destination Table The Destination table shows you all the currently configured destinations for your channel. Destination Tasks Destination Settings Destination Connector Properties Destination Mappings Parent topic: Edit Channel View Related concepts Destination Table Destination Tasks Destination Settings Destination Connector Properties Destination Mappings

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Channels link in the Mirth® Connect task pane at the top-left to enter the Channels View. In the Channel Table, s select the channel you would like to edit, then select the Edit Channel task to the left. You can also double-click the channel row in the table to access the Edit Channel This section contains the following topics: Source Tab Edit Channel View Destinations Tab Scripts Tab Edit Channel Tasks Parent topic: Edit Channel View

Mirth® Connect by NextGen Healthcare User Guide

Summary Tab

The Summary tab is what you first see when entering the Edit Channel view. It is where general settings not specifically tied to connectors are configured, like the channel name, initial state, storage settings, and description. Image of the Summary tab. Channel Properties Message Storage Settings Message storage settings enable you to determine how much message data your channel will store, whether to encrypt content, and whether to automatically delete content after messages are finished processing. Message Pruning Settings Custom Metadata Columns Channel Description Parent topic: Edit Channel View

Mirth® Connect by NextGen Healthcare User Guide

Edit Channel Tasks

The following context-specific tasks are available throughout the Edit Channel View: Task Icon Task Name Description Save Changes Saves a new revision of the current channel, if anything was actually changed. Validate Connector Validates the currently viewed connector, ensuring that all connector properties are valid and able to be saved. Edit Filter Enters the Edit Filter View for the currently viewed connector. Edit Transformer Enters the Edit Transformer View for the currently viewed connector. Import Connector Imports a connector from an XML file into the current channel. For source connectors, this completely overrides all source connector properties and the source filter/transformer. For destination connectors a new destination is added to the table. Export Connector Exports the currently viewed connector to an XML file. This includes all connector properties and the connector's filter / transformer. Export Channel Exports the current channel to an XML file. The channel must be s

Mirth® Connect by NextGen Healthcare User Guide

Scripts Tab

The Scripts tab is where channel-level scripts are configured. Select a script type from the drop-down list and edit the script in the text area.Select a script type from the drop-down and edit the script in the text area below. If a number appears next to "Scripts" in the tab, that number represents how many scripts have been edited from the default values. There is also a Reference List to the right for easy drag-and-drop of common helper methods / code templates. The following channel-level script types can be edited: Deploy Script: This script executes once when the channel is deployed. You have access to the global / global channel / configuration maps here. Typically this script is used to perform a one-time operation for the given channel, such as loading a properties file from disk, or instantiating a database connection. Undeploy Script: This script executes once when the channel is undeployed. You have access to the global / global channel / configuration maps here. Typically

Mirth® Connect by NextGen Healthcare User Guide

Choose a Source Connector

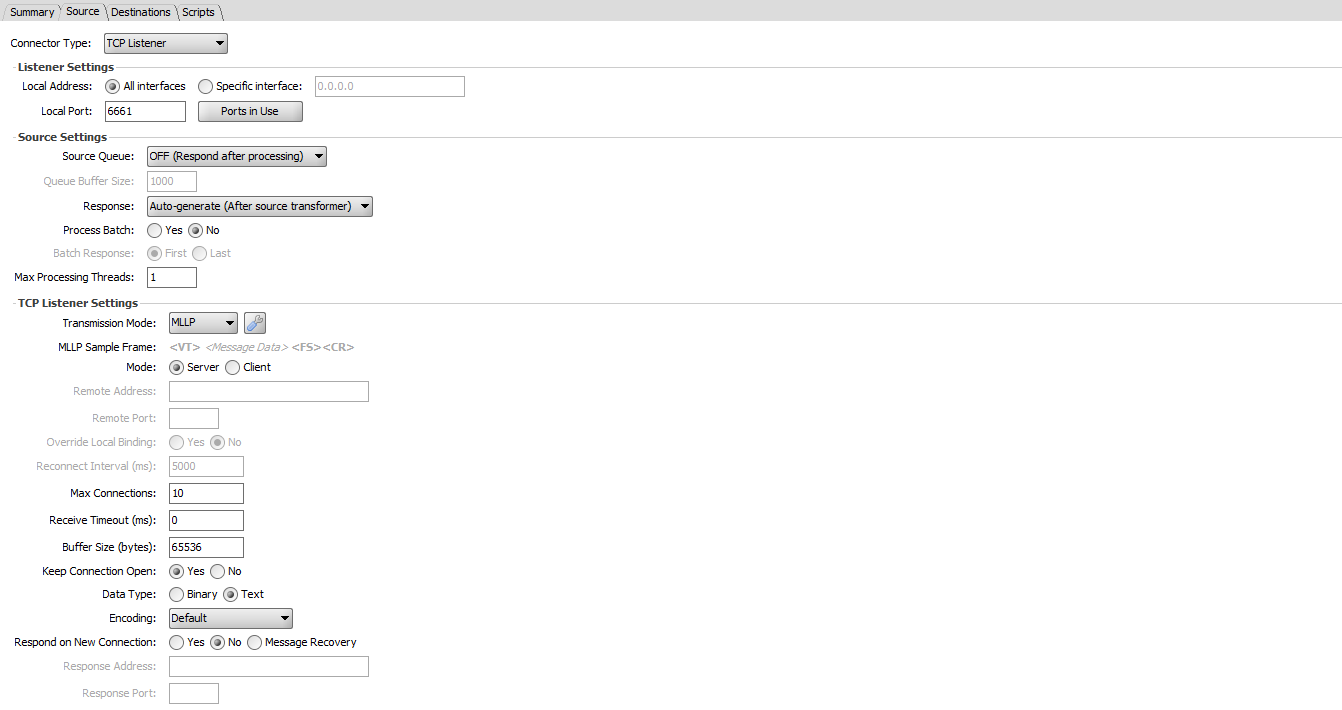

This is done simply by selecting a connector type from the drop-down menu at the very top of the tab: After selecting a source connector type, the settings shown here are broken up into different categories depending on the type of connector chosen: Listener Settings Polling Settings Source Settings HTTP Authentication Settings Source Connector Properties Parent topic: Source Tab
