HTTP Authentication Settings

Mirth® Connect by NextGen Healthcare User Guide

Source Connector Properties

This section refers to the actual connector-specific settings. The sections are labeled according to the connector types, for example, "HTTP Listener", "JavaScript Reader". For additional information on connectors in general, refer About Channels and Connectors. Here is a list of source connectors supported by Mirth® Connect Source Connectors Channel Reader DICOM Listener Database Reader File Reader HTTP Listener JMS Listener JavaScript Reader TCP Listener Web Service Listener Additional source connectors are made available as extensions: Email Reader Serial Connector FHIR Connector Interoperability Connector Suite Parent topic: Source Tab

Mirth® Connect by NextGen Healthcare User Guide

Choose a Source Connector

This is done simply by selecting a connector type from the drop-down menu at the very top of the tab: After selecting a source connector type, the settings shown here are broken up into different categories depending on the type of connector chosen: Listener Settings Polling Settings Source Settings HTTP Authentication Settings Source Connector Properties Parent topic: Source Tab

Mirth® Connect by NextGen Healthcare User Guide

Choose an Authentication Type

Select an option from the drop-down window. Once an HTTP Authentication type is selected, fields associated with the type appear. For additional information on each HTTP Authentication type, select a links below. Basic HTTP Authentication Digest HTTP Authentication JavaScript HTTP Authentication Custom Java Class HTTP Authentication OAuth 2.0 Token Verification Parent topic: HTTP Authentication Settings

Mirth® Connect by NextGen Healthcare User Guide

Custom Java Class HTTP Authentication

This authentication method gives you full control by allowing you to specify your own custom-developed Authenticator implementation. Item Name Description A Class Name The fully-qualified Java class name of the Authenticator class to use. B Properties Custom string properties to pass into your class. Parent topic: HTTP Authentication Settings

Mirth® Connect by NextGen Healthcare User Guide

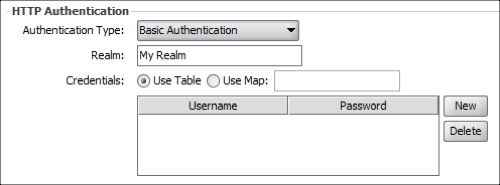

Basic HTTP Authentication

Provides Basic Authentication support for HTTP-based source connectors. Item Name Description A Realm The protection space for this server. B Use Table Use Table: When selected, use the Credentials table (B) to populate credentials. To Use the Table Select New Double-click the Username field and enter a username for the credential. Double-click the Password field and enter a password for the credential. Note: At least one username/password pair is required for the credentials. Use Map: When selected, the Java map specified by the following variable will is used to populate credentials. The map must have String keys and either String or List<String> values. Parent topic: HTTP Authentication Settings

Mirth® Connect by NextGen Healthcare User Guide

Source Tab

The Source tab is where the source connector is configured. This includes the source connector properties, and the source filter/transformer scripts. Image of the Source tab where the source connector is configured. Choose a Source Connector Listener Settings Polling Settings Source Settings HTTP Authentication Settings Source Connector Properties Parent topic: Edit Channel View
