HTTP Listener

This source connector acts as an HTTP server, listening for requests from one or more remote clients. The messages sent to the channel can be the raw payload, or an XML document allowing multipart payloads to be parsed in a consistent and easy-to-use way. The HTTP payload can be either Base64 encoded or converted using a charset, depending on the Content-Type. Responses that go back to each client can be fully configured, including custom response headers. Finally, static resources or directories can be automatically hosted, to allow the connector to act as a simple web server that serves specific content. Additional options are available with the SSL Manager extension.

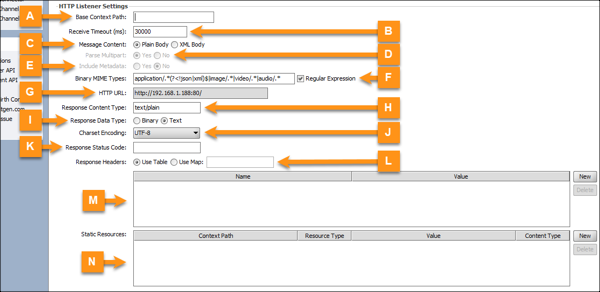

Supported property groups:

Item	Name	Default Value	Description
A	Base Context Path		The context path for the HTTP Listener URL. Note: If this is specified, any requests made at this base context path must have a trailing slash in the request URI.
B	Receive Timeout (ms)	30000	The maximum idle time in milliseconds for a connection.
C	Message Content	Plain Body	Plain Body: The request body will be sent to the channel as a raw string. XML Body: The request body will be sent to the channel as serialized XML.
D	Parse Multipart	Yes	Applies only to Message Content XML Body. Select Yes to automatically parse multipart requests into separate XML nodes. Select No to always keep the request body as a single XML node.
E	Include Metadata	No	Applies only to Message Content XML Body. Select Yes to include request metadata (method, context path, headers, query parameters) in the XML content. Note: Regardless of this setting, the same metadata is always available in the source map.
F	Binary MIME Types	application/.* (?<!json\|xml)$\| image/.\|video /.\|audio/.*	When a response comes in with a Content-Type header that matches one of these entries, the content will be encoded into a Base64 string. If Regular Expression is unchecked, specify multiple entries with commas. If Regular Expression is checked,, enter a valid regular expression to match MIME types against.
G	HTTP URL	<auto-generated>	Displays the generated HTTP URL for the HTTP Listener. This is not an actual configurable setting, but is instead displayed for copy/paste convenience. Note: The host in the URL is the same as the host you used to connect to the Administrator. The actual host that connecting clients use may be different due to differing networking environments.
H	Response Content Type	text/plain	The MIME type to be used for the response.
I	Response Data Type	Text	If Binary is selected, responses is decoded from Base64 into raw byte streams. If Text is selected, responses is encoded with the specified character set encoding.
J	Charset Encoding	UTF-8	Select the character set encoding to be used for the response to the sending system. Set to Default to assume the default character set encoding for the JVM Mirth® Connect by NextGen Healthcare is running on.
K	Response Status Code		Enter the status code for the HTTP response. If this field is left blank, a default status code of 200 is returned for a successful message, and 500 is returned for an errored message. If a Response is chosen in the Source Settings, the status of that response is used to determine a successful or errored response.
L	Response Headers Map Variable	Use Table	Use Table: The table below will be used to populate response headers. Use Map: The Java map specified by the following variable will be used to populate response headers. The map must have String keys and either String or List<String> values.
M	Response Headers		When using the Use Table option above, enter custom headers to send back to the originating client
N	Static Resources		Values in this table are automatically sent back to any request with the matching context path. There are three resource types: File: The value field specifies the path of the file to return. Directory: Any file within the directory given by the value field may be requested, but subdirectories are not included. Custom: The value field itself is returned as the response.

HTTP Listener

Supported property groups:

Item	Name	Default Value	Description
A	Base Context Path		The context path for the HTTP Listener URL. Note: If this is specified, any requests made at this base context path must have a trailing slash in the request URI.
B	Receive Timeout (ms)	30000	The maximum idle time in milliseconds for a connection.
C	Message Content	Plain Body	Plain Body: The request body will be sent to the channel as a raw string. XML Body: The request body will be sent to the channel as serialized XML.
D	Parse Multipart	Yes	Applies only to Message Content XML Body. Select Yes to automatically parse multipart requests into separate XML nodes. Select No to always keep the request body as a single XML node.
E	Include Metadata	No	Applies only to Message Content XML Body. Select Yes to include request metadata (method, context path, headers, query parameters) in the XML content. Note: Regardless of this setting, the same metadata is always available in the source map.
F	Binary MIME Types	application/.* (?<!json\|xml)$\| image/.\|video /.\|audio/.*	When a response comes in with a Content-Type header that matches one of these entries, the content will be encoded into a Base64 string. If Regular Expression is unchecked, specify multiple entries with commas. If Regular Expression is checked,, enter a valid regular expression to match MIME types against.
G	HTTP URL	<auto-generated>	Displays the generated HTTP URL for the HTTP Listener. This is not an actual configurable setting, but is instead displayed for copy/paste convenience. Note: The host in the URL is the same as the host you used to connect to the Administrator. The actual host that connecting clients use may be different due to differing networking environments.
H	Response Content Type	text/plain	The MIME type to be used for the response.
I	Response Data Type	Text	If Binary is selected, responses is decoded from Base64 into raw byte streams. If Text is selected, responses is encoded with the specified character set encoding.
J	Charset Encoding	UTF-8	Select the character set encoding to be used for the response to the sending system. Set to Default to assume the default character set encoding for the JVM Mirth® Connect by NextGen Healthcare is running on.
K	Response Status Code		Enter the status code for the HTTP response. If this field is left blank, a default status code of 200 is returned for a successful message, and 500 is returned for an errored message. If a Response is chosen in the Source Settings, the status of that response is used to determine a successful or errored response.
L	Response Headers Map Variable	Use Table	Use Table: The table below will be used to populate response headers. Use Map: The Java map specified by the following variable will be used to populate response headers. The map must have String keys and either String or List<String> values.
M	Response Headers		When using the Use Table option above, enter custom headers to send back to the originating client
N	Static Resources		Values in this table are automatically sent back to any request with the matching context path. There are three resource types: File: The value field specifies the path of the file to return. Directory: Any file within the directory given by the value field may be requested, but subdirectories are not included. Custom: The value field itself is returned as the response.
