HTTP Sender

This destination connector sends an HTTP request to an external web server. The method, parameters, and headers can all be fully customized. Both Basic and Digest authentication (preemptive or reactive) are supported. Sending requests through a proxy server is also supported, even when using HTTPS. The HTTP payload can be written out as raw bytes, or converted using a specified charset. Responses can be automatically converted to XML, allowing multipart payloads to be parsed in a consistent and easy-to-use way. Additional options are available with the SSL Manager extension.

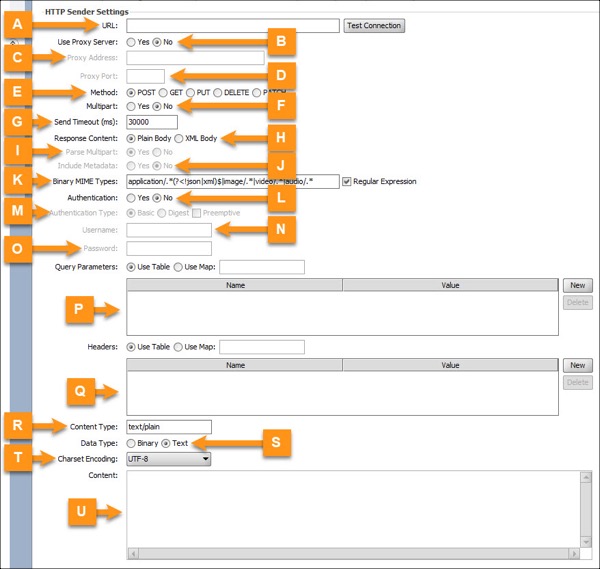

Supported property groups:

ItemNameDefault ValueDescription
AURL The URL of the HTTP server to send each message to.
BUse Proxy ServerNoIf enabled, requests are forwarded to the proxy server specified in the address/port fields below.
CProxy Address The domain name or IP address of the proxy server to connect to.
DProxy Port The port on which to connect to the proxy server.
EMethodPOSTThe HTTP operation (POST / GET / PUT / DELETE / PATCH) to send for each message.
FMultipartNoIf enabled, the content is first written to a local temp file and is then wrapped in a single file part inside a multipart/form-data payload.
GSend Timeout (ms)30000Sets the socket timeout (SO_TIMEOUT) in milliseconds to be used executing the method. A timeout value of zero is interpreted as an infinite timeout.
HResponse ContentPlain Body
  • Plain Body: The response body will be stored as a raw string.
  • XML Body: The response body will be stored as serialized XML.
IParse MultipartYes

Applies only to Response Content XML Body.

  • Select Yes to automatically parse multipart responses into separate XML nodes.
  • Select No to always keep the response body as a single XML node.
JInclude MetadataNo

Applies only to Response Content XML Body.

  • Select Yes to include response metadata (response code, headers) in the XML content.
KBinary MIME Types

application/.*

(?<!json|xml)$|

image/.*|video/.*|

audio/.*

When a response comes in with a Content-Type header that matches one of these entries, the content is encoded into a Base64 string.

  • If Regular Expression is unchecked, specify multiple entries with commas.
  • If Regular Expression is checked, enter a valid regular expression to match MIME types against.
LAuthenticationNoIf enabled, a Basic or Digest Authorization header is automatically added to the request.
MAuthentication TypeBasic

Select either Basic or Digest authentication type.

  • If the Preemptive option is checked, the Authorization header is sent to the server with the initial request.
  • If the Preemptive option is unchecked, the Authorization header is only sent when the server requests it.
NUsername The username to use to authenticate to the HTTP server.
OPassword The password to use to authenticate to the HTTP server.
PQuery ParametersUse Table
  • Use Table: The table below will be used to populate query parameters.
  • Use Map: The Java map specified by the following variable will be used to populate query parameters. The map must have String keys and either String or List<String> values.

When using the Use Table option above, entries in this table will automatically be added to the request URI as query parameters. Multiple parameters with the same name are supported.

QHeadersUse Table
  • Use Table: The table below will be used to populate headers.
  • Use Map: The Java map specified by the following variable will be used to populate headers. The map must have String keys and either String or List<String> values.

When using the Use Table option above, entries in this table will be added to the request as HTTP headers. Multiple headers with the same name are supported

RContent Typetext/plainThe HTTP message body MIME type to use. If application/x-www-form-urlencoded is used, the query parameters specified above will be automatically encoded into the request body.
SData TypeText
  • Select Binary if the outbound message is a Base64 string. This is decoded before it is sent out.
  • Select Text if the outbound message is textual. This is encoded with the specified character set encoding.
TCharset EncodingUTF-8

Select the character set encoding to send with the Content-Type header, or Default to use the default character set encoding for the JVM Mirth® Connect is running on.

  • If None is selected, no charset will be included in the Content-Type header unless explicitly specified in the Content Type field.
UContent The actual payload to send. Only applicable for entity-enclosing requests (POST / PUT / PATCH). Velocity Variable Replacement is supported here.
