SSL Manager

Mirth® Connect by NextGen Healthcare User Guide

Connector-Specific Properties

Every connector has its own custom set of properties. The properties you configure for a TCP Listener will be different from a Database Writer and so on. Here is a list of source and destination connectors supported by Mirth® Connect: Source Connectors Channel Reader DICOM Listener Database Reader File Reader HTTP Listener JMS Listener JavaScript Reader TCP Listener Web Service Listener Destination Connectors Channel Writer DICOM Sender Database Writer Document Writer File Writer HTTP Sender JMS Sender JavaScript Writer SMTP Sender TCP Sender Web Service Sender Additional connectors are made available as extensions: Email Reader Serial Connector NextGen Results CDR Connector FHIR Connector Interoperability Connector Suite Parent topic: Connector Components

Mirth® Connect by NextGen Healthcare User Guide

Source Connectors

This section refers to the actual connector-specific settings for the source connector. The section is labeled according to the connector type, e.g. "HTTP Listener", "JavaScript Reader". For additional information on connectors in general, go here: About Channels and Connectors Here is a list of source connectors supported by Mirth® Connect by NextGen Healthcare: Channel Reader DICOM Listener Database Reader File Reader HTTP Listener JMS Listener JavaScript Reader TCP Listener Web Service Listener Additional source connectors are available as extensions: Email Reader Serial Connector FHIR Connector Interoperability Connector Suite Channel Reader DICOM Listener Database Reader File Reader HTTP Listener JMS Listener JavaScript Reader TCP Listener Web Service Listener

SSL Manager User Guide

Introduction

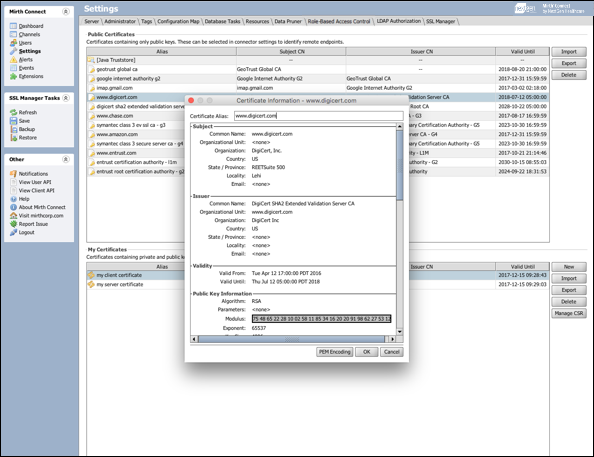

The SSL Manager extension lets you quickly enable/configure certificate-based Secure Socket Layer (SSL) connectivity for socket-based connectors such as the HTTP Listener/Sender, Web Service Listener/Sender, TCP Listener/Sender, DICOM Listener/Sender, Email Reader / SMTP Sender, and File Reader/Writer (in FTP mode). The central settings view allows you to manage and store your certificates in one location. Trusted certificates and advanced SSL settings such as client (two-way) authentication and host name verification can be applied on a per-connector basis. For technical and purchasing information about this extension, contact us via our website or by e-mailing mirthconnectsales@nextgen.com. What's the difference between SSL and TLS? The terms SSL and TLS are typically used interchangeably. Technically speaking, TLS (Transport Layer Security) is the current proper name, and SSL (Secure Sockets Layer) is the name of an older version of the protocol. However, since "SSL" is the most wid

SSL Manager User Guide

FTPS Connectors

File Transfer Protocol with SSL (FTPS) connectors are configured on an Edit Channel - Source / Destination page. For File Readers / File Writers using the SSL Manager in FTP mode: Besides the regular SSL settings, the Implicit FTPS option is available. When you enable Implicit FTPS, the connector immediately initiates a secure SSL connection; otherwise, an unsecured connection is established first, which is then upgraded to a secure connection (for example, via the AUTH command). Many FTP servers support both modes, but you should contact the manager of the FTP server to determine which mode is best for you. Settings for File Transfer Protocol with SSL

Mirth® Connect by NextGen Healthcare User Guide

§170.315(d)(9) Trusted Connection

(d)(9) Trusted connection requires the ability to encrypt messages and send through a trusted connection. Required Extensions SSL Manager Features that Support the Certification The SSL Manager extension provides options that ensure encryption and connectivity validation through the use of SSL certificates. Required Actions In your Mirth® Connect channels, enable SSL to establish trusted connections between endpoints. Parent topic: Cures Certification

SSL Manager User Guide

Apply Destination Connector SSL Settings

On the Channels page, double-click a channel in the Channel list. Select the Destinations tab. In the Connector Type field, select the connector type that supports the SSL Manager (HTTP Sender, Web Service Sender, File Writer in FTP mode). In the SSL Settings section, the SSL Manager is inactive. If you populate the URL field in the HTTP Sender Settings section, the field turns yellow with a Lock icon next to the URL. If you move the pointer over the Lock icon, a tool tip appears that explains the reason for the situation. (Selecting the Lock icon opens a window with the same content as the tool tip.) Adding a URL while the Manager is Inactive In the SSL Settings section - Use SSL Manager field, select Yes to nullify the locked condition and enable all security options and two-way authentication. (The URL field turns green to reflect the change.) Enabling SSL Manager Select the wrench icon to open the SSL Settings window: Items on the SSL Settings Window Item Name Default Value Descrip
