Edit Code Templates View

Mirth® Connect by NextGen Healthcare User Guide

Code Template Library Table

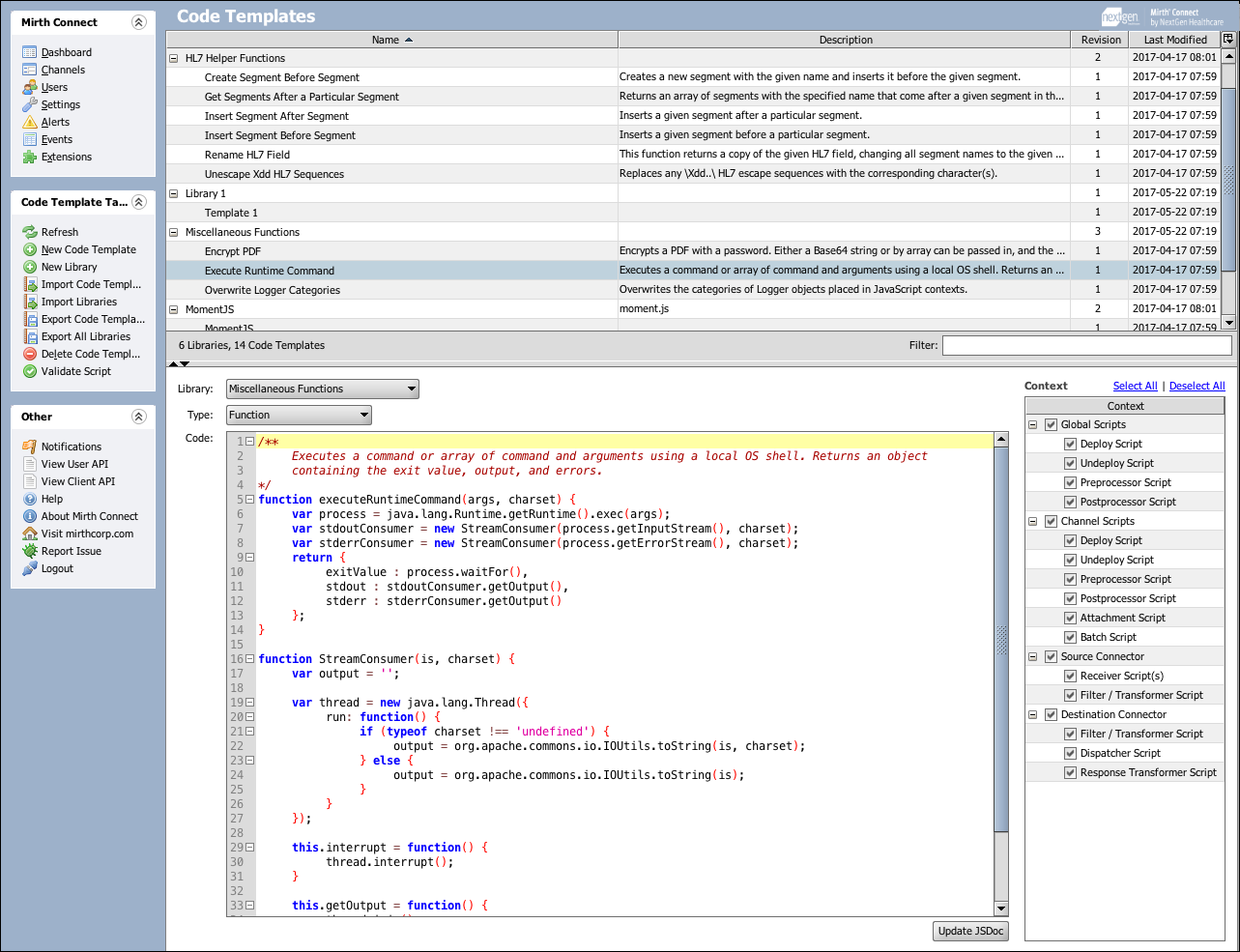

The table in the top section of the Edit Code Templates View shows all currently configured code templates and libraries. The name column is displayed as a tree, showing libraries at the hierarchical top level, and all child code templates at a lower level. The filter field at the bottom allows you to easily filter down to a particular code template or library by typing in all or part of the name. The status label to the left of the filter displays how many total code templates / libraries are configured, and how many are currently shown with the given filter. For additional information on tables in Mirth® Connect, see Mirth Connect Administrator. Image of the Code Templates library table Column Description Name The name of the code template or library. This column displays as a tree, showing libraries at the hierarchical top level, and all child code templates at a lower level. Double-click on this column to edit the name. Id The unique identifier for the code template or library. Typ

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Channels link in the Mirth® Connect task pane at the top-left side of the window to enter the Channels View: Select the Edit Code Templates link in the Channel Tasks task pane to the left. This section is separated into the following topics: Code Template Library Table Edit Library Panel Edit Code Template Panel Code Template Tasks Parent topic: Edit Code Templates View

Mirth® Connect by NextGen Healthcare User Guide

Edit Library Panel

When any library is selected in the Code Template Library Table, the Edit Library panel is shown below. This allows you to change the description of the library, and decide which channels to include the library in. Link Libraries to Channels Parent topic: Edit Code Templates View

Mirth® Connect by NextGen Healthcare User Guide

Code Template Tasks

The following context-specific tasks are available throughout the Edit Code Templates View: Task Icon Task Name Description Refresh Refreshes the list of code templates / libraries. If there are unsaved changes, you are prompted to save first before refreshing. Save Changes Saves all changes made to all code templates / libraries. Changes to a code template will cause its revision to increment. Changes to a library, or adding/removing code templates to/from the library, will cause its revision to increment. New Code Template Creates a new code template in the currently selected library. If there are currently no libraries configured for your server, you must first create a new library before this task becomes available. New Library Creates a new code template library and adds it to the table. By default the library is not included in any channels. Use the Channels table in the Edit Library Panel to link the library to specific channels. Import Code Templates Import a single code templa

Mirth® Connect by NextGen Healthcare User Guide

Edit Views

This section is separated into the following topics: Edit Channel View Edit Filter / Transformer Views Edit Global Scripts View Edit Code Templates View Edit Alert View Edit Channel View Edit Filter / Transformer Views You can use the Edit Filter view or the Transformer view to configure filter rules and transformer steps. Edit Global Scripts View The Edit Global Scripts view provides global scripts across all channels. Edit Code Templates View This view is where code templates and libraries are configured for your Mirth® Connect server. Edit Alert View Use the Edit Alert view to configure and modfiy alerts. Parent topic: Mirth Connect Administrator

Mirth® Connect by NextGen Healthcare User Guide

Code Template Libraries

This tab allows you to link code template libraries to the current channel you are editing. Note that this accomplishes the same thing as including channels on the Edit Library Panel within the Edit Code Templates View. It is included here as well within the Edit Channel View for convenience. The tree within this tab is organized in a way that Libraries are the top-level nodes, and each Code Template underneath is a child of that library. Select any library or code template row, and if a description is available, it will show in the bottom section of the dialog. Link Code Template Libraries Parent topic: Set Dependencies Window
