Attachments Tab

Mirth® Connect by NextGen Healthcare User Guide

Message Content Tab

The Messages tab in the Message Browser shows the actual content of the message at various states as it processed through the selected connector message. View Message Content Message Content Types Formatting Messages Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

Metadata Table

This table shows metadata (such as ID, status, and timestamps) about the messages that match your current search window. The number of messages shown in the table at once is determined by the Page Size option (see Search Messages for additional information about the Page Size option). When you first enter the Message Browser, by default the latest 20 messages (by ID) appear. Messages are organized by ID, and multiple rows for each connector message appear in the table, depending on your search criteria. Add a Column to the Metadata Table Metadata Table Columns Custom Metadata Columns Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

Mappings Tab

The Mappings tab shows all entries stored in variable maps for the selected connector message. View Mappings Mappings Table Columns Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

Errors Tab

If any error content exists for a connector message, a separate Errors tab will be present in the message browser when you select that row in the Metadata Table. You can tell beforehand whether a connector message has error content by looking at the Errors column in the metadata table. For additional information, see Metadata Table. View Message Errors Error Content Types Parent topic: Message Browser View

Mirth® Connect by NextGen Healthcare User Guide

View Attachments

To view attachment content: Double-click the row in the Attachments table, OR, select the row in the Attachments table, then select the View Attachment task to the left. A confirmation dialog pop up, asking you what type of viewer to use. There are four types of attachment viewers: Text, Image, DICOM, and PDF. The dialog will try to pre-select the viewer for you based on the Type of the attachment. If you need to override that selection and choose a different viewer, you can do that by using the drop-down menu. If you want to bypass this dialog and have the Message Browser always automatically open the viewer based on the Type of the attachment, you can check the Always choose check box. This setting can be reset later in the Administrator Settings Tab. Once you have chosen a viewer, select the OK button to proceed. Parent topic: Attachments Tab

Mirth® Connect by NextGen Healthcare User Guide

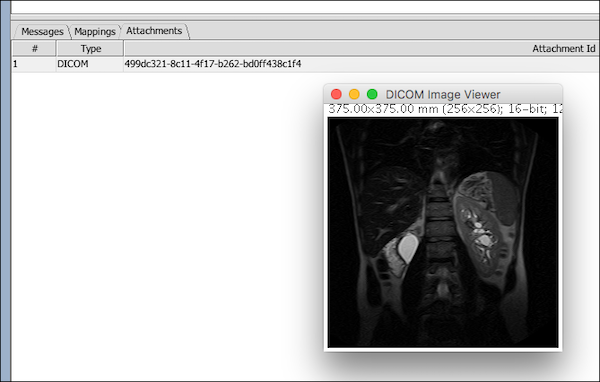

DICOM Attachment Viewer

Use this for DICOM attachments. A dialog pops up to show the image data for the DICOM message as well as some metadata about it. If the attachment has multiple image slices, use the horizontal scroll bar at the bottom to switch between them. Parent topic: Attachments Tab
