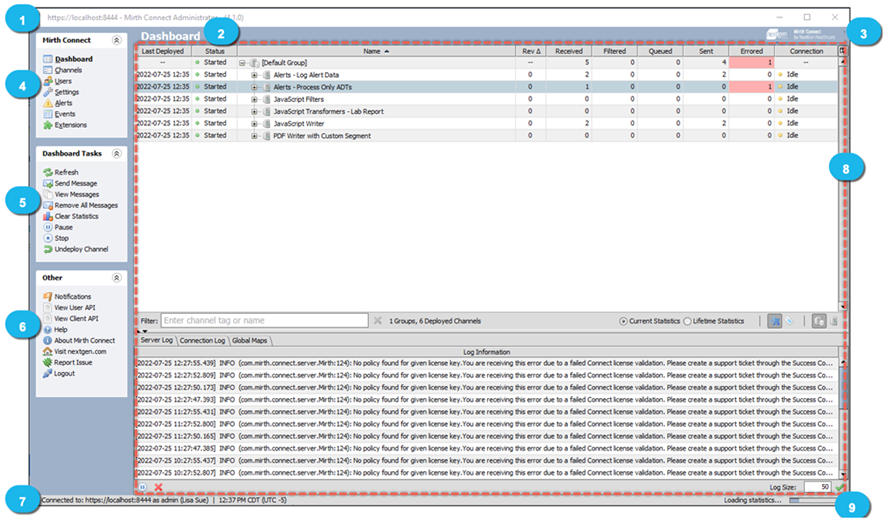

Administrator Layout

Item	Description
1	Server name and Mirth® Connect version
2	Current view title
3	Link to Mirth® Connect website
4	Main Administrator views: The highlighted view identifies the current view panel (in this case it is the Dashboard)
5	Context-specific tasks
6	Miscellaneous tasks
7	Server connection status
8	Current view panel (in this case, the Dashboard View)
9	Task progress bar

Mirth® Connect by NextGen Healthcare User Guide

Monitor Views

This section is separated into the following topics: Dashboard View Message Browser View Alerts View Events View Dashboard View The Dashboard is the default view you will see after logging on to the Mirth® Connect Administrator. Message Browser View Alerts View The Alerts View is like a dashboard for your currently configured alerts. Events View System events (such as logons, errors, and channel updates) log to an internal database that you can view using the Events view. Parent topic: Mirth Connect Administrator

Mirth® Connect by NextGen Healthcare User Guide

Management Views

This section is separated into the following topics: Channels View Users View Settings View Extensions View Channels View The Channels View is the main management window for all channels configured on your Mirth® Connect server. Users View The Users view is the main management screen for all users that have access to log on to Mirth® Connect. Settings View The Settings view encompasses a wide variety of management settings and tasks for your Mirth® Connect server. Extensions View Parent topic: Mirth Connect Administrator

Mirth® Connect by NextGen Healthcare User Guide

Mirth® Connect Administrator

The Mirth® Connect Administrator is the graphical user interface (GUI) that is used to log on to a Mirth® Connect server and create/modify/deploy channels. See Administrator Launcher Overview for information on opening Mirth® Connect Administrator. It can be accessed from the main launch page in a browser. For additional information on opening the Administrator, see Mirth Connect Administrator Overview. Administrator Layout The Mirth® Connect Administrator includes main view selections and context-specific tasks located on the left side of the window. Working With Tables You can perform actions on tables to make the data easier to view and work with. Monitor Views Management Views Edit Views Other Tasks A number of miscellaneous tasks are available at any time throughout the Mirth® Connect Administrator using the Other tasks menu.

Mirth® Connect by NextGen Healthcare User Guide

Dashboard View

The Dashboard is the default view you will see after logging on to the Mirth® Connect Administrator. The Dashboard gives you an overall view of all of your deployed channels. It also enables you to start or stop specific channels and connectors. Image of the Dashboard view in the Administrator To access the Dashboard view from a different location, select the Dashboard link in the Task panel in the upper-left side of the window: An image of the Task panel in the Administrator Dashboard Table Server Log Connection Log Global Maps Dashboard Tasks Filter By Channel Name or Tag Parent topic: Monitor Views

Mirth® Connect by NextGen Healthcare User Guide

Mirth® Connect Administrator Overview

The Mirth® Connect Administrator is used to develop and manage all channels and can be run anywhere in relation to the Mirth® Connect server. The Mirth® Connect Administrator consists of menus and view panels that change depending on the task (for example, Dashboard, Channel, Edit Channel, Settings). Note: You no longer need to use Java Web Start. NextGen Healthcare has released a new Administrator Launcher that you can use instead. See Administrator Launcher Overview. Download the Administrator Launcher You must download the Administrator Launcher to use it to open the Administrator. Launch the Administrator After you download the Administrator Launcher, you can log on to the Mirth® Connect Administrator. Log On Use the Mirth® Connect Login window to authenticate yourself and log on to the Administrator. Logging on for the First Time When you log on to Mirth® Connect for the first time, you are required to set up your user account. Parent topic: Getting Started with Mirth Connect

Mirth® Connect by NextGen Healthcare User Guide

Launch the Administrator

After you download the Administrator Launcher, you can perform the following steps to launch and log on to the Mirth® Connect Administrator. Using the Server Manager: On Windows/Linux, you can launch the Mirth® Connect Administrator using the Administrator button in the bottom-left corner of the Mirth® Connect Server Manager - Server page. Using the launch web page: Open a web browser and navigate to your launch page. This is usually http://localhost:8080 or https://localhost:8443, though you may need to edit the IP or port depending on your settings. Select Download Administrator Launcher to download the installer file. Image showing log on from the launch web page. The Access Secure Site button takes you to the Web Dashboard Sign In page. Parent topic: Mirth Connect Administrator Overview Related concepts The Web Dashboard
