Overview

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Object Builder

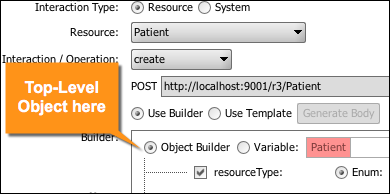

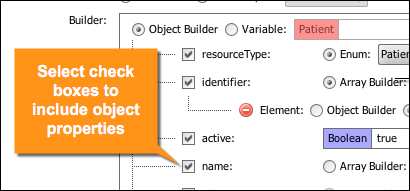

When a property value is the type Object, you will be able to choose from Object Builder or Variable. If you want to use a hard-coded value or dynamically replaced variable, choose Variable. When Object Builder is selected, the property will be expanded into a sub-tree that shows all of the sub-properties. From there you can select or deselect sub-properties as you see fit. Parent topic: FHIR Resource Builder

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Array Builder

When a property value is the type Array, you will be able to choose from Array Builder or Variable. If you want to use a hard-coded value or dynamically replaced variable, choose Variable. When Array Builder is selected, a plus icon will be enabled, allowing you to add new elements to the array. Each element will have a minus icon that you can use to remove that specific element. Parent topic: FHIR Resource Builder

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Description Tool-tips and JSON Schema

If a property has a description, it will show up in the tool-tip for the variable text field: You can also click on the colored icon next to the text field to view the underlying JSON schema for that specific node: Parent topic: FHIR Resource Builder

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Populating Values

To the right of each property name are the options you have available to populate the property. The options will vary depending on the type of property. For example, the following JSON value types typically only have a single text field: String Boolean Number Integer Null You can enter in hard-coded values as shown in the screenshot above. Or, depending on the context you can provide dynamic variable replacement. FHIR Sender When using the resource builder on a FHIR Sender, you can use Velocity variable replacements such as ${varName}. You can also drag-and-drop variables over from the right-hand-side Destination Mappings list. FHIR Transformer Step / Code Template When using the resource builder on a FHIR Transformer Step Type or FHIR Transformer Step Type, any JavaScript expression is valid. For String values, you can also choose to enter a hard-coded literal value. Next to each String value field, there is a button you can use to toggle between these two modes: Parent topic: FHIR Re

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

FHIR Resource Builder

This feature is used on the FHIR Sender, FHIR Transformer Step Type, and FHIR Code Template Type. It provides an easy, graphically driven way to create or learn about the structure of FHIR resources or data types. Overview Populating Values Enumerated Values Object Builder Array Builder Description Tool-tips and JSON Schema

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Setting FHIR Sender Properties

After installing, you should now have "FHIR Sender" as one of your destination connector options. It is similar to the HTTP Sender: Image of the Edit Channel - Fhir Sender window The first option in the FHIR Sender Settings allows you to select the FHIR version to use in the destination connector. The default selected version is R4. Each version of FHIR has a different set of resources, so selecting a different version changes the list of resources in the Resources drop-down. The content of each resource also varies between FHIR versions. For example, a Patient resource in R4 does not have the exact same set of properties as a Patient resource in STU3. The properties in the Builder reflect these differences. Retrieving and Viewing Capabilities Parent topic: FHIR Sender
