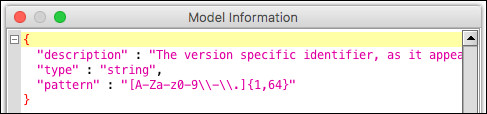

Description Tool-tips and JSON Schema

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Populating Values

To the right of each property name are the options you have available to populate the property. The options will vary depending on the type of property. For example, the following JSON value types typically only have a single text field: String Boolean Number Integer Null You can enter in hard-coded values as shown in the screenshot above. Or, depending on the context you can provide dynamic variable replacement. FHIR Sender When using the resource builder on a FHIR Sender, you can use Velocity variable replacements such as ${varName}. You can also drag-and-drop variables over from the right-hand-side Destination Mappings list. FHIR Transformer Step / Code Template When using the resource builder on a FHIR Transformer Step Type or FHIR Transformer Step Type, any JavaScript expression is valid. For String values, you can also choose to enter a hard-coded literal value. Next to each String value field, there is a button you can use to toggle between these two modes: Parent topic: FHIR Re

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Object Builder

When a property value is the type Object, you will be able to choose from Object Builder or Variable. If you want to use a hard-coded value or dynamically replaced variable, choose Variable. When Object Builder is selected, the property will be expanded into a sub-tree that shows all of the sub-properties. From there you can select or deselect sub-properties as you see fit. Parent topic: FHIR Resource Builder

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Array Builder

When a property value is the type Array, you will be able to choose from Array Builder or Variable. If you want to use a hard-coded value or dynamically replaced variable, choose Variable. When Array Builder is selected, a plus icon will be enabled, allowing you to add new elements to the array. Each element will have a minus icon that you can use to remove that specific element. Parent topic: FHIR Resource Builder

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

Overview

At the top of the builder is the top-level object being created. For example, if you are creating a Patient with the FHIR Sender, the top-level object will be a Patient: Each object in the tree may have properties underneath it. These are indented and have check boxes next to them. Select or deselect the check boxes to include or exclude properties: Parent topic: FHIR Resource Builder

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

FHIR Resource Builder

This feature is used on the FHIR Sender, FHIR Transformer Step Type, and FHIR Code Template Type. It provides an easy, graphically driven way to create or learn about the structure of FHIR resources or data types. Overview Populating Values Enumerated Values Object Builder Array Builder Description Tool-tips and JSON Schema

Mirth® Connect by NextGen Healthcare FHIR Connector User Guide

The FhirUtil Utility Class

There is also a FhirUtil class accessible in JavaScript contexts. This contains methods to convert to and from XML/JSON, create special resource types like OperationOutcome, or generating resource narratives. Here are some of the most useful methods available: toXML(resource, fhirVersion) fromXML(resourceXML, fhirVersion) toJSON(resource, fhirVersion) fromJSON(resourceJSON, fhirVersion) xmlToJSON(resourceXML, fhirVersion) jsonToXML(resourceJSON, fhirVersion) createOperationOutcome(severity, code, details, fhirVersion) createBinaryResource(byteArray, mimeType, fhirVersion) createBinaryResource(base64String, mimeType, fhirVersion) generateNarrative(resource, fhirVersion) Note that we deprecated the versions of these methods that do not take a fhirVersion, and we recommend you modify your existing code to use these new methods. There are other methods that are not listed here; as mentioned before you can look at the Reference list, the auto-completion dialog, or the Javadoc for more infor
