About Advanced Clustering Configuration

Mirth® Connect by NextGen Healthcare Advanced Clustering User Guide

About Command Center Processor Role

This topics helps you understand how to use the Advanced Clustering feature in conjunction with the Command Center Base plug-in. When you use Advanced Clustering with the Command Center Base plug-in, the Advanced Clustering plug-in needs to enforce that only one server performs certain actions such as registering, unregistering, syncing, and starting or stopping sub-extensions. The Command Center Processor column is available in the Node Configuration list on the Clustering page. You can designate a preferred server to perform Command Center actions by selecting its radio button. If the preferred server is offline, another server automatically assumes the role until the preferred server is back online. Columns in the Node Configuration section Parent topic: About Advanced Clustering Configuration

Mirth® Connect by NextGen Healthcare Advanced Clustering User Guide

About Cluster Settings

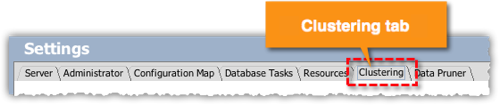

The Clustering page includes clustering configuration settings that you can modify. This table contains the configuration settings that appear on the Clustering page, including a description of each element. Setting Name Description Default Value Possible Values Heartbeat Interval The frequency (in milliseconds) to send heartbeats and channel status updates to the cluster. 1000 200-9999 Heartbeat Timeout If a node fails to send a heartbeat within the set number of milliseconds, it is considered disconnected from the cluster. 300000 100-9999 Cluster Sync Interval The frequency (in milliseconds) to query the cluster for new tasks to execute. These tasks handle membership changes, message recovery, role changes, and server name changes. 1000 100-9999 Dashboard Status Sync Interval The frequency (in milliseconds) to query the cluster to update channel dashboard statuses. 1000 100-9999 Cluster Log Sync Interval The frequency (in milliseconds) to query the cluster to update alert logs, conne

Mirth® Connect by NextGen Healthcare Advanced Clustering User Guide

About Polling and Pruning Roles

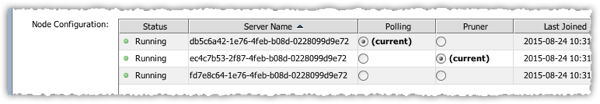

One requirement of the Advanced Clustering plugin is that all participating servers in the cluster be connected to a single, shared database. Because of this requirement, the plugin needs to enforce that only one server in the cluster is assigned to execute the data pruner on its defined schedule. Likewise, a similar problem exists for channels with polling source connectors (File Reader, Database Reader, JavaScript Reader). Typically, a polling source connector polls a shared file system or an external database, in which case, not all servers in the cluster should perform this operation. If they did, you may end up with the same HL7 message file being processed once for each server in the cluster. To avoid this problem, the Advanced Clustering plugin designates one server in the cluster to perform these polling operations. To designate a particular server as the preferred "polling" or "pruning" server, select the appropriate server by selecting its radio button in the Node Configurati

Mirth® Connect by NextGen Healthcare Advanced Clustering User Guide

About IP Address and Ports

When using the Advanced Clustering plugin, nodes send notifications to each other to improve performance. This is especially important if using the Guarantee Message Order option on any channels. To enable nodes to receive notifications, you must specify the IP address of each node, as well as the port that each node should listen for notifications on. The IP address is automatically populated with a "best guess," but you may need to manually change it if the value is not correct. The port is set to "10000" by default, but you can change it to any other port number. Note: The port must be available on the node to receive notifications and benefit from improved performance. To disable receiving notifications on a node, set its port to a blank value. This will lead to decreased performance. Parent topic: About Advanced Clustering Configuration

Mirth® Connect by NextGen Healthcare User Guide

Advanced Clustering

The Advanced Clustering plug-in improves the availability of your Mirth® Connect cluster with automatic message takeover. If one server in the cluster fails, another server will automatically resume processing of any queued or unfinished messages from the failed server. Managing your cluster becomes easier as you can monitor the status of each server, deploy/start/stop/pause channels across all servers, and view message statistics for the whole cluster or a particular server from the Mirth® Connect dashboard. This plug-in can be used with standalone Mirth® Connect instances using your own load-balancing solution, but also seamlessly integrates with the load-balancing and failover services provided on Mirth Appliances. Contact Us if you have any questions. Image of the Advanced Clustering extension features Parent topic: Services and Extensions

Mirth® Appliance by NextGen Healthcare Deployment Guide, 4.1

Mirth® Connect Advanced Clustering

Mirth® Connect has the ability to run in a clustered environment to provide high availability and improved performance. Mirth® Connect is likely installed on your appliance, which means there is a Mirth® Connect entry in the Applications menu that provides access to the configuration windows for Mirth® Connect clustering. Mirth® Connect can run in a clustered environment to provide high availability and improved performance when you are using the Advanced Clustering plugin, which is available to Platinum subscribers. You can set up two appliances, previously set up with database replication and automatic failover, and the Mirth® Connect Clustering plugin, to provide a highly-available network endpoint for message processing backed by a single, highly-available database. Mirth Appliance by NextGen Healthcare Features Mirth® Appliance by NextGen Healthcare supports a number of clustering features when you are using the Advanced Clustering plugin. Parent topic: Applications Menu
