About Viewing Message Statistics

Mirth® Connect by NextGen Healthcare User Guide

From the Dashboard

Select the Dashboard link in the Mirth Connect task panel on the upper-left side of the window. Select a channel where the messages you would like to view reside. Select the View Messages task in the left task list or double-click the channel in the Dashboard Table. For additional information, see Dashboard Table: Parent topic: Navigation

Mirth® Connect by NextGen Healthcare User Guide

From the Channels View

Select the Channels link in the Mirth Connect task panel on the upper-left side of the window. Select a channel where the messages you would like to view reside. Select the View Messages task in the left task list. For additional information, see Channel Tasks. This section is separated into the following topics: Metadata Table Message Content Tab Mappings Tab Errors Tab Attachments Tab Search Messages Message Browser Tasks Parent topic: Navigation

Mirth® Connect by NextGen Healthcare User Guide

Dashboard View

The Dashboard is the default view you will see after logging on to the Mirth® Connect Administrator. The Dashboard gives you an overall view of all of your deployed channels. It also enables you to start or stop specific channels and connectors. Image of the Dashboard view in the Administrator To access the Dashboard view from a different location, select the Dashboard link in the Task panel in the upper-left side of the window: An image of the Task panel in the Administrator Dashboard Table Server Log Connection Log Global Maps Dashboard Tasks Filter By Channel Name or Tag Parent topic: Monitor Views

Mirth® Connect by NextGen Healthcare User Guide

The Web Dashboard

The Web Dashboard is a quick and easy way to view channel / connector statistics across your server without needing to launch the Administrator. It runs in a web browser, and is also supported on mobile devices. To login to the Web Dashboard: In the address field of your browser, type localhost: followed by the Web Start Port number. (See the Server Manager - Server page; default: 8080. ) Select the Access Secure Site button for Web Dashboard Sign in, the page changes, prompting you to enter a Username and Password. Image of the Web Dashboard to view channel and connector statistics After you log on, you can see all of your deployed channels in a table. To view connector-level statistics, expand the arrow next to your channel name. You can also switch between current and lifetime statistics. Image of the Dashboard Statistics page to view channel statistics. To launch the Administrator interface from the Web Dashboard, select the arrow next to the user avatar in the top-right, and selec

Mirth® Connect by NextGen Healthcare Advanced Clustering User Guide

About Advanced Clustering Configuration

When the Advanced Clustering plugin is installed, the Clustering tab appears on the Settings page in Mirth® Connect. Image of the Clustering tab on the Settings page On this page, you can configure various timing settings used by the Advanced Clustering plugin. The page also features - in the Node Configuration section - a list of servers that have registered with the cluster, including status information about each server. Image of the Node Configuration section on the Clustering tab About Cluster Settings The Clustering page includes clustering configuration settings that you can modify. About Polling and Pruning Roles About Command Center Processor Role This topics helps you understand how to use the Advanced Clustering feature in conjunction with the Command Center Base plug-in. About IP Address and Ports

Mirth® Connect by NextGen Healthcare User Guide

Advanced Clustering

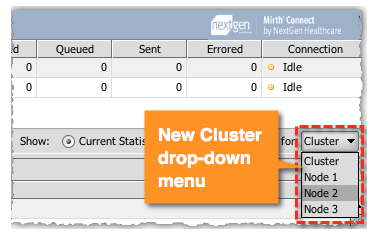

The Advanced Clustering plug-in improves the availability of your Mirth® Connect cluster with automatic message takeover. If one server in the cluster fails, another server will automatically resume processing of any queued or unfinished messages from the failed server. Managing your cluster becomes easier as you can monitor the status of each server, deploy/start/stop/pause channels across all servers, and view message statistics for the whole cluster or a particular server from the Mirth® Connect dashboard. This plug-in can be used with standalone Mirth® Connect instances using your own load-balancing solution, but also seamlessly integrates with the load-balancing and failover services provided on Mirth Appliances. Contact Us if you have any questions. Image of the Advanced Clustering extension features Parent topic: Services and Extensions
