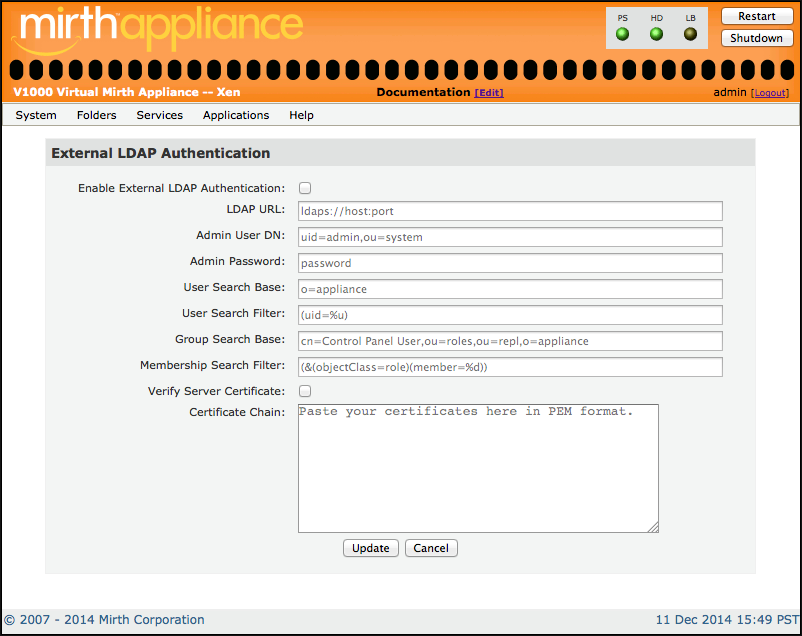

External LDAP Authentication
You can use external LDAP server credentials to log on to the Control Panel.
Select to define these settings.
The following table displays example values for inputs on the External LDAP Authentication window, but you can consult your local network administrator for the appropriate values for your environment. The Group Search Base and Membership Search Filter inputs are optional; these inputs can be used to restrict which user accounts are able to log on to the Control Panel.
| Field | Example Value | Note |
|---|---|---|
| LDAP URL | ldap://w.x.y.z | Replace w.x.y.z with the IP or host name of your Active Directory server. |
| Admin User DN | CN=Administrator, CN=Users, DC=example, DC=local | Provide a valid DN. |
| Admin Password | password | Provide a valid password. |
| User Search Base | OU=Accounts,DC=example,DC=local | Replace as necessary. |
| User Search Filter | (&(objectCategory=person)(sAMAccountName=%u)) | This should work as-is. |
| Group Search Base | CN=Control Panel Users,OU=Users,OU=Accounts,DC=example,DC=local | This field is optional, and it restricts logons to users in the Control Panel Users group. |
| Membership Search Filter | (&(objectclass=group)(member=%d)) | This should be provided if a Group Search Base was provided. If so, this value should work as-is. |
| Verify Server Certificate | Checked or unchecked | This is optional, and toggles certificate-based verification the AD server. |
| Certificate Chain | A PEM-encoded certificate | Ask your AD administrator to obtain this certificate. |
