All Interoperability Destination Connectors have their envelope set to use Encoded Data by default, but they also support generating the envelope based on the Operation dropdown menu selection.

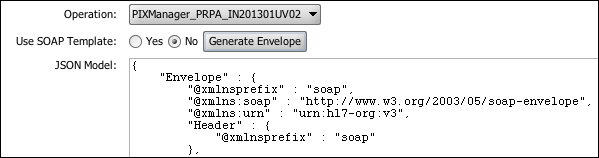

Select Generate Envelope to populate the text box beneath with the operation's envelope. You may then enter and replace values in the envelope and even use velocity variables to customize and construct the outbound envelope.
Specify the format of the envelope with the Use Soap Template setting:
No - Informs the connector that you are working with JSON and the Generate Envelope button will populate the template text box with a JSON envelope template. (If the destination Data Type is set to JSON, then the JSON envelope will be converted to XML when it is sent to its destination.)
Yes - Informs the connector that you are working with XML and the Generate Envelope button will populate the template text box with an XML envelope template.
Note: For more complex schemas not using the default WSDL, this button may produce an incomplete SOAP envelope. Refer to your vendors to ensure you are sending the correct SOAP envelopes in your outgoing messages.
