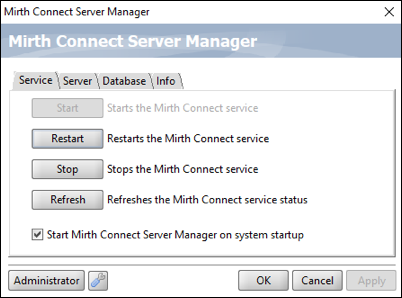

Service Tab
The Service tab provides an easy way to start, restart, stop, and refresh the service, rather than using the task scheduler or command line. It also provides the option to automatically start the
Mirth® Connect
Server when the system starts.
Service Tab
Mirth® Connect by NextGen Healthcare User Guide
Server Tab
The Server tab enables you to enter details about your ports, server memory, log levels, and view log files. The following fields are available on the Server page. Function Description Web Start Port Accesses the launch page for the Mirth® Connect Administrator. Default: 8080 Administrator Port This port is used by the Mirth Connect Administrator to communicate with the Mirth® Connect Server. Default: 8443 Server Memory (mb) The server's maximum available memory (Java max heap size). By default this is 256 MB, but for large production instances you will typically want to increase this value. Main Log Level Database Log Level Channel Log Level These fields enables you to select the applicable log level from the drop-down menus. Available options include: ERROR WARN INFO DEBUG TRACE Depending on the log level, messages of the selected level or lower will pass into that level's log when the system logs a certain-level message. Refresh Select this button to update the most recent list of l
Mirth® Connect by NextGen Healthcare User Guide
Database Tab
The Database tab enables you to manage Mirth® Connect's internal database. The following fields are available on the Database tab. Function Description Type Select the database on which Mirth® Connect will store data. URL The Java Database Connectivity (JDBC) URL string associated with selected type. Username/Password The user's unique personal identifier/access code Warning: Mirth® Connect's default database, Apache Derby, is included only to help you set up quickly. Because it is not a production-level database, NextGen Healthcare strongly recommends that you not use Derby for production. Parent topic: The Mirth Connect Server Manager
Mirth® Connect by NextGen Healthcare User Guide
Info Tab
The Info tab shows the Mirth® Connect server and Java versions as well as the server ID and a link to the NextGen Healthcare website. Parent topic: The Mirth Connect Server Manager
Mirth® Connect by NextGen Healthcare User Guide
The Mirth® Connect Server Manager
The Mirth® Connect Server Manager enables you to configure and access your Mirth® Connect Server. For Windows and Mac OS X version installations, the Mirth® Connect Server Manager application resides in the system tray (Windows) or in the Applications > Mirth Connect folder (Mac). Service Tab The Service tab provides an easy way to start, restart, stop, and refresh the service, rather than using the task scheduler or command line. Server Tab The Server tab enables you to enter details about your ports, server memory, log levels, and view log files. Database Tab The Database tab is where you can to manage Mirth® Connect's internal database. Info Tab The Info tab shows the Mirth® Connect server and Java versions as well as the server ID and a link to the NextGen Healthcare website. Parent topic: Getting Started with Mirth Connect
Mirth® Connect by NextGen Healthcare User Guide
Command Center Tab
The Command Center Tab displays the general settings that pertain to the Command Center. The Status on the tab shows whether the Mirth® Connect server is currently registered or unregistered with the Mirth Command Center. Tasks This section shows the tasks that can be performed on the Command Center Tab. Task Icon Task Name Description Register Registers this Mirth® Connect server with Mirth Command Center. Unregister Unregisters this Mirth® Connect server with Mirth Command Center. This task replaces the Register task after your Mirth® Connect server is successfully registered with Mirth Command Center Parent topic: Settings View
Mirth® Connect by NextGen Healthcare User Guide
Navigation
Select the Settings link in the Mirth® Connect task pane on the top-left: side of the window. This section is separated into the following topics: Server Settings Tab Administrator Settings Tab Tags Settings Tab Configuration Map Settings Tab Database Tasks Settings Tab Resources Settings Tab Data Pruner Settings Tab Settings Tasks Parent topic: Settings View
