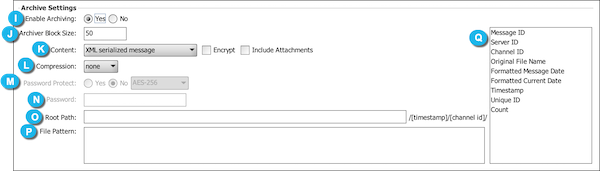

Archive Settings

Item	Name	Description
I	Enable Archiving	Determines whether message / attachment data is saved to disk before being pruned. Select Yes to save message / attachment data to disk prior to being pruned. Select No to perform a prune without saving message / attachment data.
J	Archiver Block Size	The number of messages that will be cached by the archiver. Increase this value to improve performance. Decrease this value to reduce memory usage. This value must be between 1 and 1,000. The recommended value for most servers is 50.
K	Content	The type of content that is exported from the messages. Note: XML serialized message is the only type that can be re-imported, and it includes all content across the message in a single XML file. Encrypt: Check Encrypt to encrypt the exported message content with the server's encryption key. Include Attachments: Check Include Attachments to include all attachments associated with the message in your exported file. Note that the content type must be set to XML serialized message to perform this action.
L	Compression	When compression is enabled, the files/folders created according to the File Pattern are put into a compressed file in the Root Path. Select one of the following supported compression types: None: This selection will not apply compress to the created files/folders. ZIP tar.gz tar.bz2
M	Password Protect	This option is only available if ZIP compression is selected. Select Yes to protect the resulting ZIP file with the password entered in the Password field. When selected, you can also choose what encryption algorithm to use when password-protecting files. The following algorithms are supported: Standard, AES-128, AES-256. Select No to create an unprotected .ZIP file.
N	Password	Enter the password to be used If password protection is selected in the Password Protect field.
O	Root Path	Enter the root path where you store the exported files/folder or compressed file. Relative paths are resolved against the Mirth® Connect Server home directory.
P	File Pattern	Enter the file/folder pattern where the exported message files are written. Variables from the Variables list can be used in the pattern.
Q	Variables	Contains several common variables you can use to populate the File Pattern. For additional information, see Velocity Variable Replacement.

Mirth® Connect by NextGen Healthcare User Guide

SMTP Sender

This destination connector sends an e-mail to a specified address (or list of addresses), through a given SMTP relay/host. Both implicit and explicit (STARTTLS) encryption modes are supported. The body can be either text or HTML. Custom headers and attachments can be added to the request as well. Supported property groups: Destination Settings Item Name Default Value Description A SMTP Host The domain name or IP address of the SMTP server to use to send the e-mail messages. Note that sending e-mail to an SMTP server that is not expecting it may result in the IP of the machine running Mirth® Connect being added to the server's "denylist". After filling out the necessary information below, use the Send Test Email button to send a sample e-mail to the To address, to verify that everything is working as intended. B SMTP Port 25 The port number of the SMTP server to send the e-mail messages to. Generally, the default port of 25 is used. C Override Local Binding No Select Yes to override the

Mirth® Connect by NextGen Healthcare User Guide

Export Results

You can export channel messages using the Export Results window. When you select the Export Results task, an options window opens. Note that all messages matching the current search criteria are exported, not only the ones shown on the current page. Export Results window used to export channel messages Item Name Description A Content The type of content used to export from the messages. Note that an XML serialized message is the only type that can be re-imported, and it includes all content across the message in a single XML file. B Encrypt If checked, the exported message content is encrypted with the server's encryption key. C Include Attachments If checked and the content type is set to XML serialized message, the exported file contains all attachments associated with the message. D Compression When compression is enabled, the files and folders created according to the file pattern are made into a compressed file in the root path. The following compression types are supported: ZIP t

Mirth® Connect by NextGen Healthcare User Guide

Message Storage Settings

Message storage settings enable you to determine how much message data your channel will store, whether to encrypt content, and whether to automatically delete content after messages are finished processing. This section of the Summary Tab enables you to determine how much message data your channel will store, whether to encrypt content, and whether to automatically delete content after messages are finished processing. Changing these settings may affect the availability of certain features, like queuing. Image of the Message Storage section of the Summary tab. Item Name Description A Storage Slider Use this slider bar to change how much data to store as messages process through the channel. The options are: Development: All data will be stored. Production: Everything except Processed Raw, Transformed, Response Transformed, and Processed Response content will be stored. Raw: Only Raw / Source Map content and attachments will be stored. Destination queuing is not supported in this mode,

Mirth® Connect by NextGen Healthcare User Guide

Import Messages

Note that only messages that have been exported with the "XML serialized message" option are able to be imported. Item Name Description A Import From If Server is chosen, messages are imported from the server file system. If My Computer is chosen, messages from the machine running the Administrator are imported into the server. Select Browse to select a file or folder from your local computer. B File/Folder/Archive Select a specific message XML file, a folder containing message XML files, or a zip/tar.gz/tar.bz2 compressed archive containing message XML files. C Include Sub-folders If checked, all sub-directories within the selected folder are searched recursively for messages to import. D Import Select Import to perform the import operation. Note: The message appears on the list with its contents in the Messages window at the bottom of the page. A unique identifier for each imported message appears in the Import Channel Id column. This alphanumeric code lets you readily identify messa

Mirth® Connect by NextGen Healthcare User Guide

System Preferences

System Preferences options enables you to customize system behaviors for the Mirth Connect Administrator. The following image shows the System Preferences options available on the Administrator Settings tab. It is followed by a table that provides descriptions for the System Preferences options. Item Name Description A Dashboard refresh interval (seconds) The interval, in seconds, at which the Dashboard and Alerts views are refreshed. Reduce this for faster updates and increase it for servers with more channels or when you have high latency between the client and server. B Message browser page size Sets the default page size for the message browser. C Event browser page size Sets the default page size for the event browser. D Format text in message browser Pretty-print XML/JSON messages in the message browser by default. E Message browser text search confirmation Shows a confirmation dialog in the message browser when attempting a text search, warning users that the query may take a lo

Mirth® Connect by NextGen Healthcare User Guide

Document Writer

This destination connector takes an HTML template and converts it into either a PDF or RTF document. Custom embedded stylesheets are supported. That document can then be written out to a file and/or stored as a message attachment. The page size can be specified, and for PDFs you can also encrypt the document with a password. Supported property groups: Destination Settings Item Name Default Value Description A Output File Choose how to output the document. File: Write the contents to a file. Attachment: Write the contents to an attachment. The destination's response message will contain the attachment Id and can be used in subsequent connectors to include the attachment. Both: Write the contents to both a file and an attachment. B Directory The directory (folder) where the generated file should be written. Use the Test Write button to confirm that files can be written to the folder. C File Name The file name to give to the generated file. D Document Type PDF The type of document to be c
