Restore Config

Mirth® Connect by NextGen Healthcare User Guide

Tasks

Task Icon Task Name Description Backup Config Exports a snapshot of your current server settings, including all channels, alerts, scripts, and other properties. This configuration may be backed up from one Mirth® Connect server and restored into a different server. Warning: The Server Configuration file does not include Users, Events, or Message / Attachment data. To export events, see Event Tasks - Export All Events. To export message / attachment data, see Message Browser Tasks - Export Results. Restore Config Overwrites all server settings, including all channels, alerts, scripts, and other properties, with the ones in a given XML file. Note that if a channel currently exists on your server and the same channel is present in the server configuration file, the message / attachment data for that channel will not be modified. Clear All Statistics Resets the current and lifetime message statistics for all channels on your server. Parent topic: Server Settings Tab

Mirth® Connect by NextGen Healthcare User Guide

Channel Settings

Item Name Description G Clear global map on redeploy Select Yes to clear the global map when redeploying all channels. Yes is the default for this field. Select No to keep global map information when redeploying all channels. H Default Queue Buffer Size The default source/destination queue buffer size to use for new channels. The default is 1000 (messages). I Default Metadata Columns Determines which custom metadata columns is added by default when a user creates a new channel. Options include: Source Type Version The user can also remove these column on the channel's Summary tab. For additional information, see Custom Metadata Columns. Parent topic: Server Settings Tab

Mirth® Connect by NextGen Healthcare User Guide

Server Settings Tab

This tab shows general global settings that pertain to the server or default channel properties. Image of the Server Settings tab. General Settings Channel Settings Email Settings Notification Settings Tasks Restore Config Clear All Statistics Parent topic: Settings View

Mirth® Connect by NextGen Healthcare User Guide

Restore Server Configuration

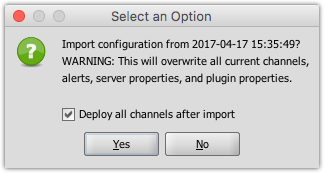

Launch the Mirth Connect Administrator (see Mirth Connect Administrator Overview) . In the Mirth Connect pane, select Settings. Select the Server tab if not already selected. In the Server Tasks pane, select Restore Config. Select the server configuration XML file you exported earlier, then select Open. You will be prompted to confirm your action. You can also choose whether or not you want channels to automatically be deployed after the restore finishes. Select Yes to begin the restore process. Once the restore process is complete, a dialog appears indicating whether the restore was successfully performed. Select OK to close the information message. Parent topic: Changing the Database Type

Mirth® Connect by NextGen Healthcare User Guide

Channel Tasks

The following context-specific tasks for channels are available from the Channels View: Task Icon Task Name Description Refresh Updates the channel table. Redeploy All Undeploys all channels, then deploys all currently enabled channels. Debug Channel Displays the Debug Channel dialog that allows you to deploy the currently selected channel while debugging specific scripts within the channel. Deploy Channel Deploys the currently selected channel(s). If a group is selected, deploys all channels underneath that group. Note that the Channel Dependencies workflow may apply to this task. Edit Global Scripts Enters the Edit Global Scripts View. Edit Code Templates Enters the Edit Channel View. New Channel Creates a newchannel and enters the Edit Channel View. The channel is not yet saved. Import Channel Imports a channel from an XML file and enters the Edit Channel View. The channel is not yet saved. For additional information, see Import Channel. Export All Channels Exports all of the channe

Mirth® Connect by NextGen Healthcare User Guide

Edit Channel Tasks

The following context-specific tasks are available throughout the Edit Channel View: Task Icon Task Name Description Save Changes Saves a new revision of the current channel, if anything was actually changed. Validate Connector Validates the currently viewed connector, ensuring that all connector properties are valid and able to be saved. Edit Filter Enters the Edit Filter View for the currently viewed connector. Edit Transformer Enters the Edit Transformer View for the currently viewed connector. Import Connector Imports a connector from an XML file into the current channel. For source connectors, this completely overrides all source connector properties and the source filter/transformer. For destination connectors a new destination is added to the table. Export Connector Exports the currently viewed connector to an XML file. This includes all connector properties and the connector's filter / transformer. Export Channel Exports the current channel to an XML file. The channel must be s
