Reference Tab

Mirth® Connect by NextGen Healthcare User Guide

Transformer Tasks

The following context-specific tasks are available throughout the Edit Transformer View: Task Icon Task Name Description Add New Step Adds a new transformer step to the table. If an Iterator step or any step that is a child of an Iterator is currently selected, the new step is placed at the end of the children of the most immediate parent Iterator. Otherwise, the new step will be placed at the very end of the list at the bottom of the table. Delete Step Removes the currently selected step from the table. If an Iterator step is deleted, all of its children are also deleted. Assign To Iterator Adds the selected step to a new or existing Iterator. For additional information, see Working With Iterators. Remove From Iterator Removes the selected step from its current Iterator. For additional information: Working With Iterators Import Transformer Imports a transformer from an XML file. You can choose to completely replace the current transformer, or simply append the steps to the current tab

Mirth® Connect by NextGen Healthcare User Guide

Rule/Step Table

The table in the top half of the Edit Filter / Transformer Views shows all the rules/steps you currently have configured. If you have Iterators, the elements are organized into a tree-table with the children underneath each Iterator. Column Description Enabled Determines whether the rule/step is currently enabled. When disabled, rules/steps are not executed at all, and act as if they were never there in the first place. For filters, this could change behavior as it follows the AND/OR order of operations. When all rules in a filter are disabled, the filter acts as if no rules exist, and is not executed at all. # This is the sequence number of the rule / step, starting at 0 for the first one. For child elements underneath an Iterator, this will be multiple numbers separated by a dash, to indicate the child index of each depth level. Name This is the name of the rule / step. If the type of rule / step allows user editing, you can double-click the cell to edit the name. For filter rules, y

Mirth® Connect by NextGen Healthcare User Guide

Edit Views

This section is separated into the following topics: Edit Channel View Edit Filter / Transformer Views Edit Global Scripts View Edit Code Templates View Edit Alert View Edit Channel View Edit Filter / Transformer Views You can use the Edit Filter view or the Transformer view to configure filter rules and transformer steps. Edit Global Scripts View The Edit Global Scripts view provides global scripts across all channels. Edit Code Templates View This view is where code templates and libraries are configured for your Mirth® Connect server. Edit Alert View Use the Edit Alert view to configure and modfiy alerts. Parent topic: Mirth Connect Administrator

Mirth® Connect by NextGen Healthcare User Guide

Available Variables

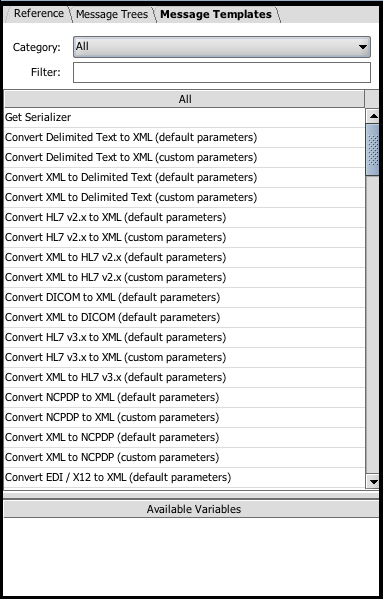

This is a convenience list shown in the Edit Transformer View when the Reference Tab is selected. It is automatically populated with the variables set in previous Mapper steps, allowing you to easily drag them into subsequent steps. Parent topic: Reference Tab

Mirth® Connect by NextGen Healthcare User Guide

Filter Tasks

The following context-specific tasks are available throughout the Edit Filter View: Task Icon Task Name Description Add New Rule Adds a new filter rule to the table. If an Iterator rule or any rule that is a child of an Iterator is currently selected, the new rule is placed at the end of the children of the most immediate parent Iterator. Otherwise, the new rule is placed at the very end of the list at the bottom of the table. Delete Rule Removes the currently selected rule from the table. If an Iterator rule is deleted, all of its children are also deleted. Assign To Iterator Adds the selected rule to a new or existing Iterator. For additional information, see Working With Iterators. Remove From Iterator Removes the selected rule from its current Iterator. For additional information, see Working With Iterators. Import Filter Imports a filter from an XML file. You can choose to completely replace the current filter or simply append the rules to the current table. For additional informa

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Channels link in the Mirth® Connect task pane at the top-left to enter the Channels View: In the Channel Table, select the channel you wish to edit, and select the Edit Channel task to the left: You can also double-click the channel row in the table. Once in the Edit Channel View, select either the Source Tab or Destinations Tab. Select a destination if necessary. Then, select on the Edit Filter, Edit Transformer, or Edit Response tasks to the left. The Edit Response task (for editing the response transformer) is only visible for destination connectors. This section is separated into the following topics: Message Templates Tab Message Trees Tab Reference Tab Create New Rules/Steps Rule/Step Table Filter Rule Properties Transformer Step Properties Response Transformers Working With Iterators View Generated Script Filter Tasks Transformer Tasks Parent topic: Edit Filter / Transformer Views
