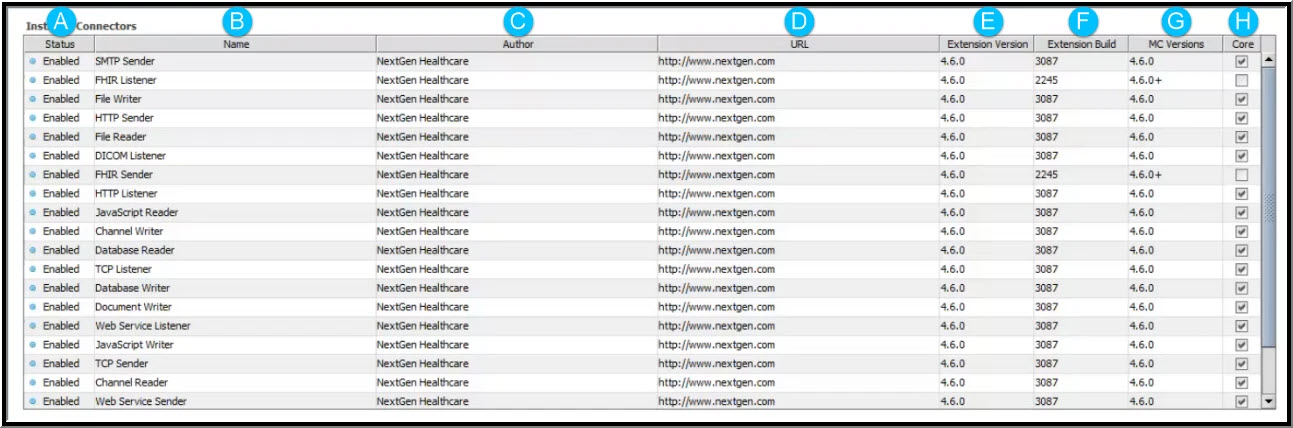

Installed Connectors Table

	Column	Description
A	Status	Indicates whether the connector is enabled or disabled.
B	Name	The name of the connector.
C	Author	The development author of the connector. This will be NextGen Healthcare for all official extensions.
D	URL	A link to the author website.
E	Extension Version	The version of this extension.
F	Extension Build	The specific build number of this extension, if applicable. For "core' extensions that come bundled with Mirth® Connect by default, this build number equals the build number ofMirth® Connect itself.
G	MC Versions	The versions of Mirth® Connect that this version of this extension is compatible with. This may be a single version, a range from min-max, or a comma-separated list of versions.
H	Core	Indicates whether this extension is a "core" extension that comes bundled with Mirth® Connect by default.

Mirth® Connect by NextGen Healthcare User Guide

Installed Plugins Table

The Installed Plugins table at the top of the Extensions view displays all plug-ins that are installed for your Mirth® Connect server. Plug-ins are extensions, but separated from connectors for simplicity. For general information about working with tables in Mirth® Connect, see Working With Tables. Installed Plugins Table Columns Column Description 1 Status Indicates whether the plug-in is enabled or disabled. 2 Name The name of the plug-in. 3 Author The development author of the plug-in. This is NextGen Healthcare for all official extensions. 4 URL A link to the author website. 5 Extended Version The version of this extension. 6 Extension Build The specific build number of this extension, if applicable. For "core' extensions that come bundled with Mirth® Connect by default, this build number is equal the build number of Mirth® Connect itself. 7 MC Versions The versions of Mirth® Connect that this version of this extension is compatible with. This may be a single version, a range from

Mirth® Connect by NextGen Healthcare User Guide

Extension Tasks

The following context-specific tasks are available from the Extensions View: Task Icon Task Name Description Refresh Updates the installed connectors and installed plugins tables. Enable Extension Enables the extension so that it can be used in your Mirth® Connect installation. This requires a restart of the server. Disable Extension Disables the extension so that it can no longer be used in your Mirth® Connect installation. This requires a restart of the server. Warning: Channels / alerts / resources that depend on an extension that you disable may stop functioning correctly. For example, channels may show up in the Channel Table as "invalid" if a connector or data type it was using has been disabled. Show Properties Displays properties for the currently selected connector or plugin. For additional information, see Show Properties Uninstall Extension Uninstalls the extension completely from your Mirth® Connect instance. This requires a restart of the server. Warning: Channels / alerts

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Extensions link in the Mirth® Connect task pane at the top-left side of the window. This section is separated into the following topics: Installed Connectors Table Installed Plugins Table Install a New Extension Extension Tasks Parent topic: Extensions View

Mirth® Connect by NextGen Healthcare User Guide

Install a New Extension

Extensions are packaged into ZIP files. To install an extension in Mirth® Connect: Navigate to the Install Extension from File System section at the bottom of the Extensions view. Select the Browse... button, then select the ZIP file of the extension you would like to install. Select the Install button. If the extension ZIP file is valid, you will see a notification asking you to restart the server: Restart the Mirth® Connect server and launch the Mirth® Connect Administrator again. You will see the new extension listed in either the Installed Connectors Table or Installed Plugins Table, depending on the type of extension you installed. Parent topic: Extensions View

Mirth® Connect by NextGen Healthcare User Guide

Users Table

This is the main section of the Users view which shows details about all of the users configured on your server. For general information about working with tables in Mirth® Connect, see Working With Tables. Users Table Columns Parent topic: Users View

Mirth® Connect by NextGen Healthcare User Guide

Add a Column to the Metadata Table

By default, eight columns are shown: Id, Connector, Status, Received Date, Response Date, Errors, Source, and Type. You can add columns to and remove columns from the table, one at a time, using the Column Options icon/menu in the list's column header. Note: The Messages Lists for all channels have the same column configuration; that is, any columns added to/removed from the Messages List of one channel are added to/removed from the Messages List of all channels. You can add as many available columns as you would like, though not all will be visible onscreen at once. If all columns cannot be viewed onscreen, a horizontal scroll bar appears below the Messages List. Scroll left or right to view the desired columns/data. Removing a column does not remove its data; the data reappears when you add the column back to the Messages List. Use the following steps to add a column to the Message List. On the far-right side of the Message List column header, select the Column Options icon. On the C
