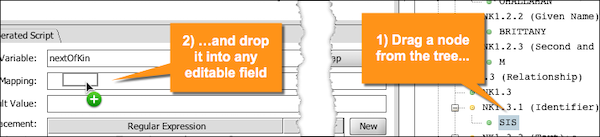

Drag-and-Drop Field Values

Mirth® Connect by NextGen Healthcare User Guide

Filter By Node Name/Description

You can quickly find a particular part of your message by using the Filter field at the top of the area. Parent topic: Message Trees Tab

Mirth® Connect by NextGen Healthcare User Guide

Create a Rule Builder Rule or Mapper Step

When editing a filter, you can create a Rule Builder Filter Rule directly from the message tree. When editing a transformer, you can create a Mapper Transformer Step in the same way. Method 1 Right-click the node you wish to filter on or map, then select either Filter by Value or Map to Variable: A dialog may be shown asking whether you want to add the rule/step as part of an Iterator. For additional information, see Working With Iterators A Rule Builder or Mapper is automatically added to the table with the selected node populated appropriately. Method 2 Drag the node you wish to filter on or map from the tree into the table. The same steps follow as in Method 1. Parent topic: Message Trees Tab

Mirth® Connect by NextGen Healthcare User Guide

Create a Message Builder Step

When editing a transformer, you can create a Message Builder Transformer Step directly from the message tree. Method 1: Right-click the node you want to modify, then select Map to Message. A dialog may be shown asking whether you want to add the step as part of an Iterator. For additional information, see Working With Iterators. A Message Builder is automatically added to the table with the selected node populated appropriately. Method 2 Drag the node you wish to map from the inbound message tree, and drop it into the node you wish to map to in the outbound message tree. The same steps follow as in Method 1. Parent topic: Message Trees Tab

Mirth® Connect by NextGen Healthcare User Guide

Message Trees Tab

The Message Trees tab is located on the right side of the Edit Filter/Transformer views and enable you to view a tree representation of your inbound/outbound message templates set in the Message Templates tab. Note: The Outbound template tree is only visible for transformers and response transformers. When you edit a connector's filter, you will only see the Inbound template tree. Filter By Node Name/Description Create a Rule Builder Rule or Mapper Step Create a Message Builder Step Drag-and-Drop Field Values Parent topic: Edit Filter / Transformer Views Related concepts Edit Filter / Transformer Views

Mirth® Connect by NextGen Healthcare User Guide

Creating Iterators From Drag-and-Drop

As explained in the Message Trees Tab section, new rules and steps can be created by right-clicking the node in the message tree, by dragging a node into the filter/transformer table, or by dragging a node from the inbound tree and dropping it onto a node in the outbound tree. In all of these cases, you will be presented with a prompt asking whether you want to create an Iterator automatically. If Yes is chosen, the Iterator Wizard dialog is shown. In this wizard dialog you can select your iteration target (what to iterate on). If you have dragged from inbound to the outbound template, you will also have the option to select which part of the outbound (tmp) expression corresponds to the inbound (msg) target being iterated on. These options correspond directly to the drag-and-drop substitutions shown at the bottom of the dialog. You are essentially telling the wizard "where the i goes" Once you select OK, the Iterator and subsequent rule/step will be created. So far it is only iterating

Mirth® Connect by NextGen Healthcare User Guide

Create New Rules/Steps

As outlined in the Message Trees Tab section, new rules / steps can be generated easily from the inbound/outbound message trees. They can also be created manually. Select the Add New Rule/Step task to the left: A new rule/step is created and added to the table. To change the type of rule/step, double-click the cell in the Type column. To change the name, double-click the cell in the Name column. Some rule/step types have names auto-generated from the properties and so do not allow editing in the table. If you are creating a filter rule, you can change the operator of the rule by selecting the AND or OR button next to the name. Parent topic: Edit Filter / Transformer Views
