DICOM Sender

This destination connector works in conjunction with the DICOM Attachment Handler Properties and the DICOM Data Type to allow Mirth® Connect to send DICOM data. This connector supports the C-STORE operation as a Service Class User (SCU). Additional options are available with the SSL Manager extension.

Supported property groups:

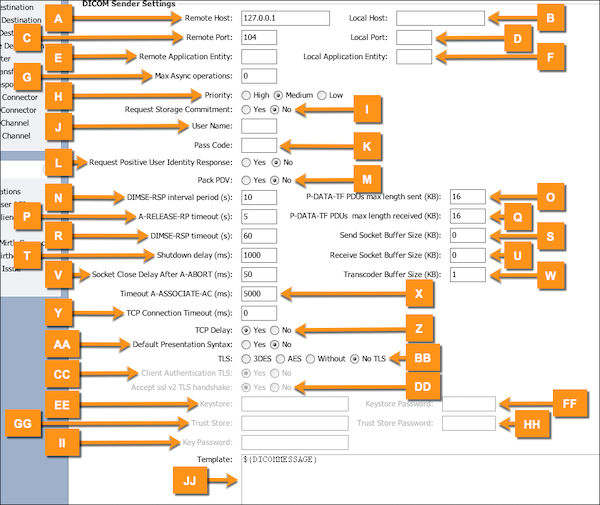

Destination Settings

Item	Name	Default Value	Description
A	Remote Host	127.0.0.1	The remote IP to send to.
B	Local Host		The local address that the client socket will be bound to.
C	Remote Port	104	The remote port to send to.
D	Local Port		The local port that the client socket will be bound to.
E	Remote Application Entity		The Application Entity title to sent to.
F	Local Application Entity		The Application Entity title to identify the local client with.
G	Max Async operations	0	Maximum number of outstanding operations performed asynchronously. Enter 0 for unlimited.
H	Priority	Medium	Priority of the C-STORE operation.
I	Request Storage Commitment	No	Request storage committment of (successfully) sent objects afterwards.
J	User Name		Enable User Identity Negotiation with specified username and optional passcode.
K	Pass Code		Optional passcode for User Identity Negotiation, only effective when a username is set.
L	Request Positive User Identity Response	No	Request positive User Identity Negotiation response, only effective when a username is set.
M	Pack PDV	No	Send only one PDV in one P-Data-TF PDU, pack command and data PDF in one P-DATA-TF PDU by default.
N	DIMSE-RSP interval period (s)	10	Period to check for outstanding DIMSE-RSP, 10 seconds by default.
O	P-DATA-TF PDUs max length sent (KB)	16	Maximal length in KB of sent P-DATA-TF PDUs, 16 KB by default.
P	A-RELEASE-RP timeout (s)	5	Timeout for receiving A-RELEASE-RP.
Q	P-DATA-TF PDUs max length received (KB)	16	Maximal length in KB of received P-DATA-TF PDUs.
R	DIMSE-RSP timeout (s)	60	Timeout in milliseconds for receiving DIMSE-RSP.
S	Send Socket Buffer Size (KB)	0	Send socket buffer size in KB
T	Shutdown delay (ms)	1000	Delay in milliseconds for closing the listening socket.
U	Receive Socket Buffer Size (KB)	0	Receive socket buffer size in KB.
V	Socket Close Delay After A-ABORT (ms)	50	Delay in ms for Socket close after sending A-ABORT.
W	Transcoder Buffer Size (KB)	1	Transcoder buffer size in KB.
X	Timeout A-ASSOCIATE-AC (ms)	5000	Timeout in milliseconds for receiving A-ASSOCIATE-AC.
Y	TCP Connection Timeout (ms)	0	Timeout in milliseconds for TCP connection. Enter 0 for no timeout.
Z	TCP Delay	Yes	Set TCP_NODELAY socket option to false.
AA	Default Presentation Syntax	No	Offer Default Transfer Syntax in separate Presentation Context. By default offered with Explicit VR Little Endian TS in one PC.
BB	TLS	No TLS	Determines whether to receive data over an implicit SSL/TLS socket. The following options are available: 3DES: TLS will be used, with the SSL_RSA_WITH_3DES_EDE_CBC_SHA cipher suite. AES: TLS will be used, with the following cipher suites: TLS_RSA_WITH_AES_128_CBC_SHA SSL_RSA_WITH_3DES_EDE_CBC_SHA Without: TLS will be used without symmetric encryption, with the cipher suite SSL_RSA_WITH_NULL_SHA. DICOM messages will be received unencrypted. No TLS: No TLS will be used. DICOM messages will be received over a regular unencrypted socket.
CC	Client Authentication TLS	Yes	Enable client authentication for TLS. Only applicable if the TLS option is not set to No TLS.
DD	Accept ssl v2 TLS handshake	Yes	Enable acceptance of the SSLv2Hello protocol in the TLS handshake.
EE	Keystore		File path or URL of P12 or JKS keystore to use for the local server certificate keypair.
FF	Keystore Password		Password for the configured Keystore.
GG	Trust Store		File path or URL of JKS truststore, used to trust remote client certificates.
HH	Trust Store Password		Password for the configured Truststore.
II	Key Password		Password for accessing the key in the Keystore.
JJ	Template	${DICOMMESSAGE}	The actual payload to send to the target channel. By default the encoded data of this destination (with all DICOM pixel data attachments reattached) will be used. Velocity Variable Replacement is supported here.
