Command Center

Mirth® Connect by NextGen Healthcare User Guide

Command Center Analytics

The Command Center Analytics transmits metrics for all channels that Mirth Command Center has configured for monitoring such as messages received, queued, filtered, errored, and average processing time. Contact Us if you have any questions. Parent topic: Command Center

Mirth® Connect by NextGen Healthcare Command Center User Guide

About Command Center

With the Command Center plug-in, an interface is available, that allows you to manage your Mirth® Connect by NextGen Healthcare environment with Mirth® Connect by NextGen Healthcare Command Center. You can register, unregister, and sync your Mirth® Connect by NextGen Healthcare environment with the Mirth® Connect by NextGen Healthcare Command Center using this interface. The Mirth® Connect by NextGen Healthcare Command Center does the following: Provides deep integration for web-based command and control of your Mirth® Connect by NextGen Healthcare environments. Supports detailed analytics and monitoring of your Mirth® Connect by NextGen Healthcare environments. Provides more capabilities and services with Mirth® Connect by NextGen Healthcare environments that are using Mirth Platform extensibility, through additional Command Center sub-extensions. Note: Command Center is currently not available in the European Union (EU) and the United Kingdom (UK).

Mirth® Connect by NextGen Healthcare Command Center User Guide

Command Center Analytics

The Command Center Analytics transmits metrics for all channels that Mirth Command Center has configured for monitoring such as messages received, queued, filtered, errored, and average processing time. A platformsync response automatically triggers at a specified time interval to collect and post data to Mirth Command Center. The default interval is 5 minutes but you can configure the interval time (in milliseconds) in your mirth.properties file by using the mcc.analytics.collection.interval.ms and mcc.analytics.post.interval.ms properties. The minimum interval allowed is 1 minute. The default number of channel metric entries that can be sent to Mirth Command Center in one request is 500. You can configure a minimum of 100 to a maximum of 10,000 entries by using the mcc.analytics.post.batch.size property to set the batch size in your mirth.properties file . If there are more entries than this number, then they will be split up into separate post requests to Mirth Command Center. The d

Mirth® Connect by NextGen Healthcare Command Center User Guide

Command Center Tasks

With the Command Center, you can perform certain tasks as mentioned below. The Mirth® Connect by NextGen Healthcare Command Center contains some tasks that you can perform and some that the system performs. You can register and unregister your Mirth® Connect by NextGen Healthcare environment and configure the clustering settings. The system automatically starts a sync task to sync your Mirth® Connect by NextGen Healthcare environment. The Command Center tasks are as follows: Register Task You can register a Mirth Connect server or cluster with Mirth Command Center. This action does the following: Starts any of the standard polling, message reporting, and any other core or feature extension-related tasks Adds all Mirth Connect database values that define its registration with the Mirth Command Center When you register a Mirth Connect cluster, the cluster gets a single environmentId shared among all the Mirth Connect servers in the cluster. You can automatically register a Mirth Connect

Mirth® Connect by NextGen Healthcare User Guide

Mirth® Connect Command Line Interface

The Command Line Interface is an alternate, lightweight way to interact with your Mirth® Connect server. Not everything you can do through the Administrator is available in the CLI (like editing channels), but common monitoring and management operations are supported: List deployed status / statistics of all channels Deploy/undeploy/start/stop/halt/pause/resume channels Enable/disable/remove channels Import/export channels, alerts, code templates, libraries, or the entire server configuration And more... The CLI comes packaged with the standard Mirth® Connect distribution. It is also available as a standalone client from the Downloads page. If using the standalone client, simply extract the archive in a location of your choice. Running the Command Line Interface Using Non-interactive Scripting

Mirth® Connect by NextGen Healthcare User Guide

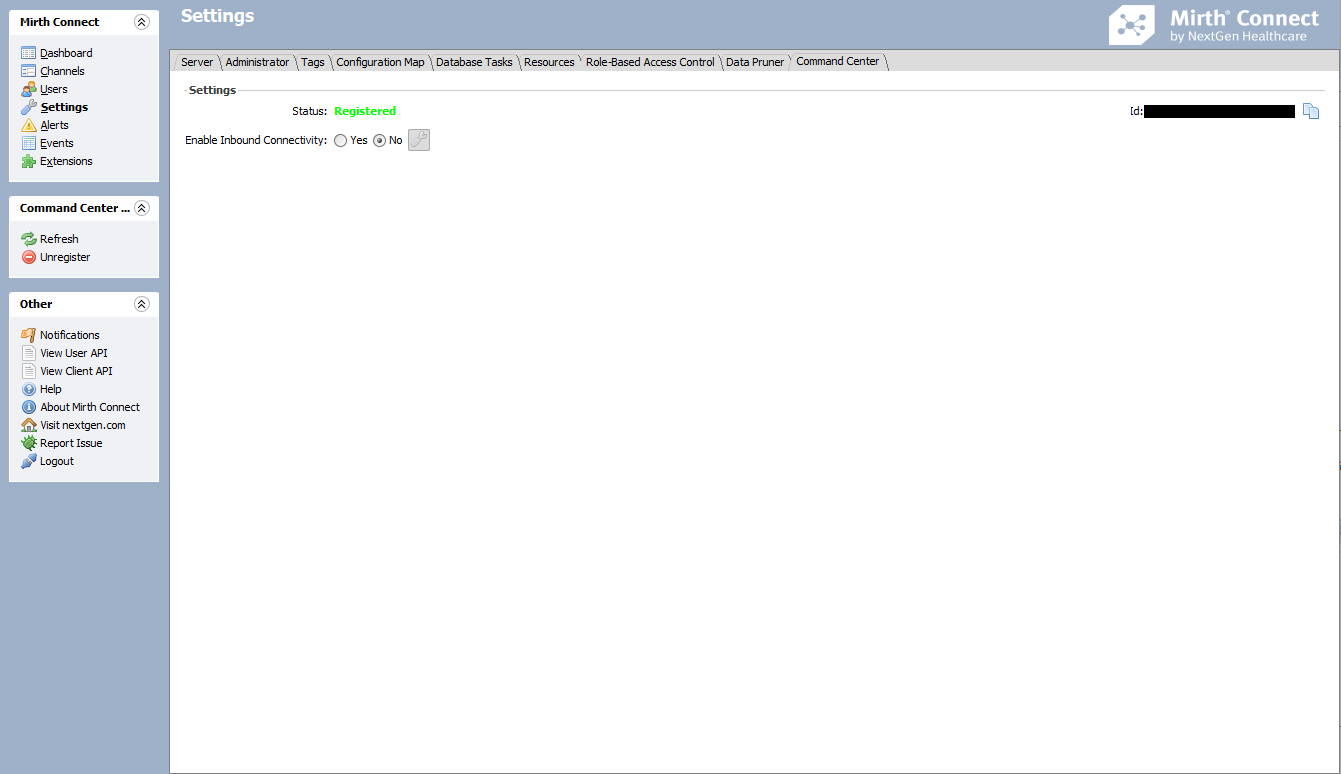

Command Center Tab

The Command Center Tab displays the general settings that pertain to the Command Center. The Status on the tab shows whether the Mirth® Connect server is currently registered or unregistered with the Mirth Command Center. Tasks This section shows the tasks that can be performed on the Command Center Tab. Task Icon Task Name Description Register Registers this Mirth® Connect server with Mirth Command Center. Unregister Unregisters this Mirth® Connect server with Mirth Command Center. This task replaces the Register task after your Mirth® Connect server is successfully registered with Mirth Command Center Parent topic: Settings View
