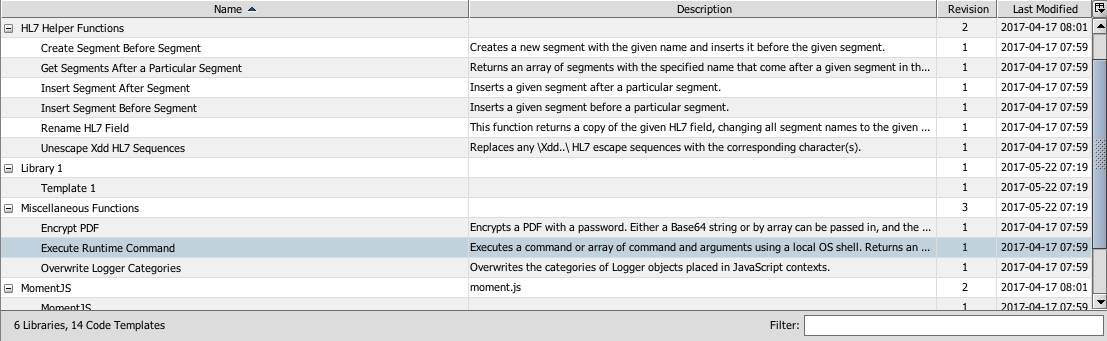

Code Template Library Table

Column	Description
Name	The name of the code template or library. This column displays as a tree, showing libraries at the hierarchical top level, and all child code templates at a lower level. Double-click on this column to edit the name.
Id	The unique identifier for the code template or library.
Type	Only applicable for code templates, this is the type of template (Function, Drag-and-Drop Code Block, Compiled Code Block). For more information, see Edit Code Template Panel.
Description	A description for the code template or library.
Revision	The current revision for the code template or library. When code templates are modified in any way and saved, the revision is incremented. When libraries are modified in any way or when any code template is added or removed from the library and then saved, the library revision is incremented.
Last Modified	The timestamp at which the code template or library was last updated.

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Channels link in the Mirth® Connect task pane at the top-left side of the window to enter the Channels View: Select the Edit Code Templates link in the Channel Tasks task pane to the left. This section is separated into the following topics: Code Template Library Table Edit Library Panel Edit Code Template Panel Code Template Tasks Parent topic: Edit Code Templates View

Mirth® Connect by NextGen Healthcare User Guide

Code Template Tasks

The following context-specific tasks are available throughout the Edit Code Templates View: Task Icon Task Name Description Refresh Refreshes the list of code templates / libraries. If there are unsaved changes, you are prompted to save first before refreshing. Save Changes Saves all changes made to all code templates / libraries. Changes to a code template will cause its revision to increment. Changes to a library, or adding/removing code templates to/from the library, will cause its revision to increment. New Code Template Creates a new code template in the currently selected library. If there are currently no libraries configured for your server, you must first create a new library before this task becomes available. New Library Creates a new code template library and adds it to the table. By default the library is not included in any channels. Use the Channels table in the Edit Library Panel to link the library to specific channels. Import Code Templates Import a single code templa

Mirth® Connect by NextGen Healthcare User Guide

Code Template Libraries

This tab allows you to link code template libraries to the current channel you are editing. Note that this accomplishes the same thing as including channels on the Edit Library Panel within the Edit Code Templates View. It is included here as well within the Edit Channel View for convenience. The tree within this tab is organized in a way that Libraries are the top-level nodes, and each Code Template underneath is a child of that library. Select any library or code template row, and if a description is available, it will show in the bottom section of the dialog. Link Code Template Libraries Parent topic: Set Dependencies Window

Mirth® Connect by NextGen Healthcare User Guide

Edit Views

This section is separated into the following topics: Edit Channel View Edit Filter / Transformer Views Edit Global Scripts View Edit Code Templates View Edit Alert View Edit Channel View Edit Filter / Transformer Views You can use the Edit Filter view or the Transformer view to configure filter rules and transformer steps. Edit Global Scripts View The Edit Global Scripts view provides global scripts across all channels. Edit Code Templates View This view is where code templates and libraries are configured for your Mirth® Connect server. Edit Alert View Use the Edit Alert view to configure and modfiy alerts. Parent topic: Mirth Connect Administrator

Mirth® Connect by NextGen Healthcare User Guide

Import Code Templates/Libraries

When importing code templates/libraries, either in the Edit Code Templates View or when importing a channel containing libraries, you are presented with a confirmation dialog. All libraries and code templates contained in the import file/channel appear in the dialog. From here you can choose to import everything, or individually select specific entries to import. Once you have made your selections, select the Import button to actually perform the import operation. If a code template or library already exists in your Mirth® Connect server, the Overwrite column displays a checkbox. If checked, the entry will overwrite the current code template / library rather than creating a new one. If there are multiple entries with such conflicts, you can easily choose to overwrite all or none of them with the All / None links at the top-right of the dialog. If the library or code template has a name that conflicts with another entry in your current table, the Conflicts column displays a red error ic

Mirth® Connect by NextGen Healthcare User Guide

Installed Plugins Table

The Installed Plugins table at the top of the Extensions view displays all plug-ins that are installed for your Mirth® Connect server. Plug-ins are extensions, but separated from connectors for simplicity. For general information about working with tables in Mirth® Connect, see Working With Tables. Installed Plugins Table Columns Column Description 1 Status Indicates whether the plug-in is enabled or disabled. 2 Name The name of the plug-in. 3 Author The development author of the plug-in. This is NextGen Healthcare for all official extensions. 4 URL A link to the author website. 5 Extended Version The version of this extension. 6 Extension Build The specific build number of this extension, if applicable. For "core' extensions that come bundled with Mirth® Connect by default, this build number is equal the build number of Mirth® Connect itself. 7 MC Versions The versions of Mirth® Connect that this version of this extension is compatible with. This may be a single version, a range from
