Adding Segments to a Message

Segments are a group of fields that can contain varying types of data. Each segment exists independently and can be used in multiple messages.

To add a segment to a message, create a new XML object with a segment code, then add it after the segment it should follow:

var seg = new XML("<ZZZ><ZZZ.1><ZZZ.1.1>My Value</ZZZ.1.1></ZZZ.1></ZZZ>");
msg['QRF'] += seg;

Insert the += operator into a message after a particular segment or at the end of the message. Mirth® Connect has four global functions by which you can create segments for messages:

Function	Function Description	Example
Create Segment (individual)	Creates an XML object for the segment that has not been inserted into a message.	`var newSeg = createSegment('ZYX'); newSeg ['ZYX']['ZYX.1']['ZYX.1.1'] = "My Value"; msg += newSeg;`
Create Segment (in message)	Creates an XML object for the segment at the end of a specified message.	`createSegment ('ZYX', msg); msg ['ZYX']['ZYX.1']['ZYX.1.1'] = "My Value";`
Create Segment (in message, index)	Creates an XML object for the segment in a specified message (msg or tmp) in a specified index and is issued for repeating segments; if a segment is already in the index, the new segment overwrites it.	`createSegment ('OBX', msg, 4); msg ['OBX'][4]['OBX.3']['OBX.3.2'] = "Glucose";`
Create Segment After Segment	Creates an XML object for the segment and adds it after the target segment.	`createSegmentAfter("ZZZ", msg ["QRF"]); msg ["ZZZ"]["ZZZ.1"]["ZZZ.1.1") = "My Value"; which function call is equivalent to: msg ["QRF"] += createSegment("ZZZ");`

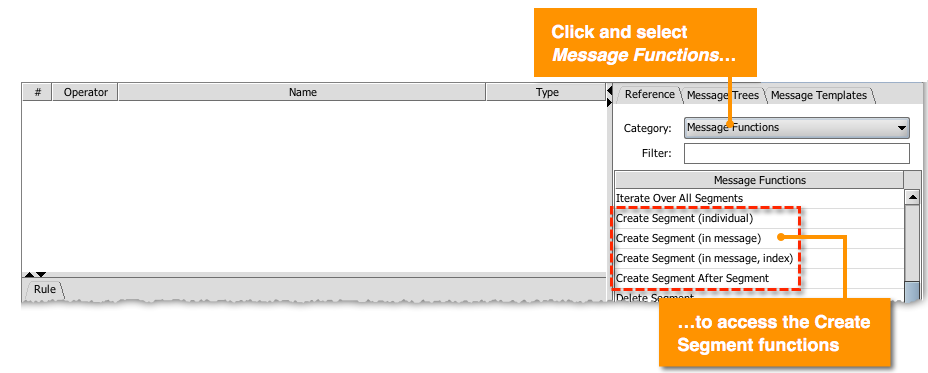

To access these functions, navigate to an Edit Channel page > Channel Tasks panel > Edit Filter or Edit Transformer. On the Reference tab, select the Category bar > Message Functions, among which you will find the Create Segment functions. For additional information, see Reference List.

Image showing how to add a segment to a message
