Regex Attachment Handler Properties

Mirth® Connect by NextGen Healthcare User Guide

Entire Message Attachment Handler Properties

This attachment handler takes the entire incoming message data and stores it as a single attachment. The Raw message data afterwards is the attachment token. The handler has a single property, MIME Type, which specifies what type of attachment data you expect to receive. You can use a specific value like "text/plain", or you can use Velocity replacement to inject source map variables. For example if you are using an HTTP Listener, you can use the MIME type coming in the Content-Type header: Parent topic: Attachment Handler Properties

Mirth® Connect by NextGen Healthcare User Guide

JavaScript Attachment Handler Properties

This attachment handler allows you to write a custom JavaScript script to handle extracting attachments. For additional information on how to work with JavaScript in Mirth® Connect by NextGen Healthcare, see Mirth Connect and JavaScript and Attachment JavaScript Functions. Scope Variables Parent topic: Attachment Handler Properties

Mirth® Connect by NextGen Healthcare User Guide

Custom Attachment Handler Properties

This attachment handler gives you full control over the attachment extraction process by allowing you to provide a custom Java implementation of MirthAttachmentHandlerProvider. In the properties you specify the class name, and any properties you want to pass in. Properties Parent topic: Attachment Handler Properties

Mirth® Connect by NextGen Healthcare User Guide

DICOM Attachment Handler Properties

The DICOM Attachment Handler does not have properties to configure. When used, the handler automatically takes the incoming DICOM data and extract all pixel data into one or more attachments. The resulting raw data will not have an attachment replacement token, but instead will be the Base64 encoded representation of the DICOM message without the pixel data. If the DICOM Data Type is used in a filter / transformer, it will automatically serialize this Base64 data into an XML message containing all header / tag data. Because there is no attachment replacement token, to reattach DICOM messages on the destination connector side, a special token is used: ${DICOMMESSAGE} This indicates to the destination connector that the encoded data should be merged with any pixel data attachments into a final binary representation before being dispatched to the external system. Parent topic: Attachment Handler Properties

Mirth® Connect by NextGen Healthcare User Guide

Attachment Handler Properties

The following attachment handlers are supported: Entire Message Attachment Handler Properties Regex Attachment Handler Properties DICOM Attachment Handler Properties JavaScript Attachment Handler Properties Custom Attachment Handler Properties Entire Message Attachment Handler Properties Regex Attachment Handler Properties DICOM Attachment Handler Properties JavaScript Attachment Handler Properties Custom Attachment Handler Properties Parent topic: Attachment Handlers

Mirth® Connect by NextGen Healthcare User Guide

Regular Expressions Table

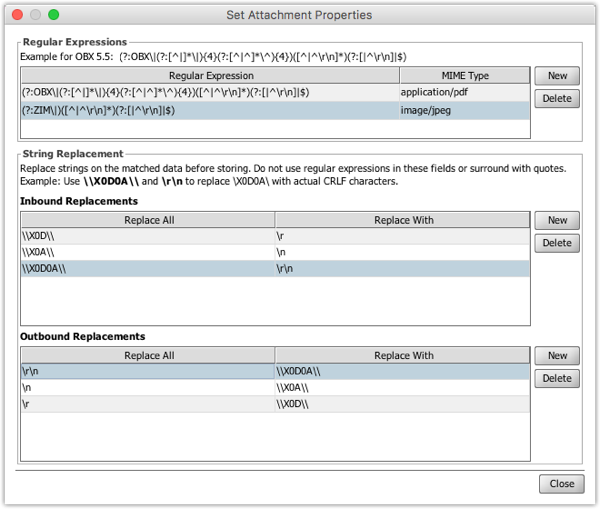

The table at the top of the Regex Attachment Handler dialog shows the current regular expressions you have configured. The first capture group is used to determine what data to extract, so if you have other groups in the expression, make sure to include "?:" to make then non-capturing. There is an example that shows how to extract data from the OBX.5.5 component in an HL7 v2.x message: (?:OBX\|(?:[^|]*\|){4}(?:[^|^]*\^){4})([^|^\r\n]*)(?:[|^\r\n]|$) Select the New / Delete buttons to add or remove regular expressions from the table. For each regular expression you can also specify a MIME type. This supports Velocity Variable Replacement, so you can use source map variables here. Parent topic: Regex Attachment Handler Properties
