Reference List

Mirth® Connect by NextGen Healthcare User Guide

Reference Tab

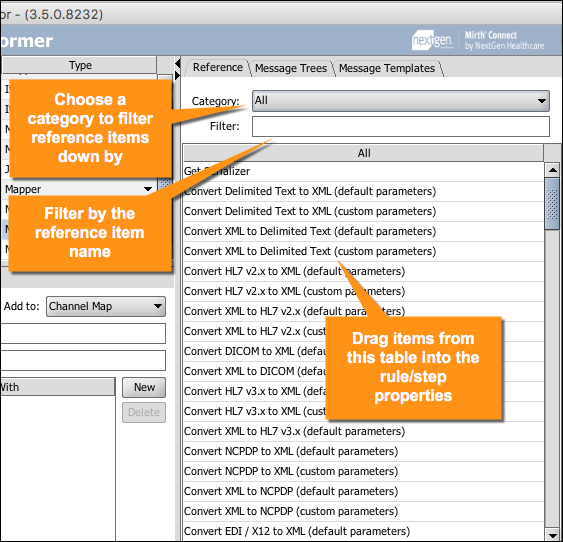

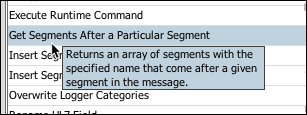

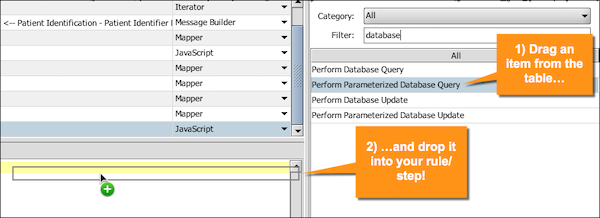

The Reference tab is located on the right side of the Edit Filter / Transformer Views and provides helpful variables and templates you can use within your filter rules and transformer steps. Image of the Reference tab which provides helpful variables and templates you can use within your filter rules and transformer steps. Reference List The Reference List contains code templates (both built-in and custom) that you can drag into your filter rules and transformer steps. Available Variables Parent topic: Edit Filter / Transformer Views Related concepts Reference List Available Variables

Mirth® Connect by NextGen Healthcare User Guide

Rule/Step Table

The table in the top half of the Edit Filter / Transformer Views shows all the rules/steps you currently have configured. If you have Iterators, the elements are organized into a tree-table with the children underneath each Iterator. Column Description Enabled Determines whether the rule/step is currently enabled. When disabled, rules/steps are not executed at all, and act as if they were never there in the first place. For filters, this could change behavior as it follows the AND/OR order of operations. When all rules in a filter are disabled, the filter acts as if no rules exist, and is not executed at all. # This is the sequence number of the rule / step, starting at 0 for the first one. For child elements underneath an Iterator, this will be multiple numbers separated by a dash, to indicate the child index of each depth level. Name This is the name of the rule / step. If the type of rule / step allows user editing, you can double-click the cell to edit the name. For filter rules, y

Mirth® Connect by NextGen Healthcare User Guide

Edit Filter / Transformer Views

This is where filter rules and transformer steps are configured. Although Edit Filter and Edit Transformer are different views, they are very similar and so are combined into this section. Also, the filter and transformer are actually executed together as a single script for each connector. Image of the Transformer view where rules and transformer steps are configured. Navigation Message Templates Tab The Message Templates tab enables you to edit the inbound and outbound message templates for your filter or transformer. Message Trees Tab The Message Trees tab enables you to view a tree representation of your inbound/outbound message templates set in the Message Templates tab. Reference Tab The Reference tab provides helpful variables and templates you can use within your filter rules and transformer steps. Create New Rules/Steps Rule/Step Table Filter Rule Properties Transformer Step Properties Response Transformers Working With Iterators View Generated Script Filter Tasks Transformer

Mirth® Connect by NextGen Healthcare User Guide

Code Template Tasks

The following context-specific tasks are available throughout the Edit Code Templates View: Task Icon Task Name Description Refresh Refreshes the list of code templates / libraries. If there are unsaved changes, you are prompted to save first before refreshing. Save Changes Saves all changes made to all code templates / libraries. Changes to a code template will cause its revision to increment. Changes to a library, or adding/removing code templates to/from the library, will cause its revision to increment. New Code Template Creates a new code template in the currently selected library. If there are currently no libraries configured for your server, you must first create a new library before this task becomes available. New Library Creates a new code template library and adds it to the table. By default the library is not included in any channels. Use the Channels table in the Edit Library Panel to link the library to specific channels. Import Code Templates Import a single code templa

Mirth® Connect by NextGen Healthcare User Guide

Scripts Tab

The Scripts tab is where channel-level scripts are configured. Select a script type from the drop-down list and edit the script in the text area.Select a script type from the drop-down and edit the script in the text area below. If a number appears next to "Scripts" in the tab, that number represents how many scripts have been edited from the default values. There is also a Reference List to the right for easy drag-and-drop of common helper methods / code templates. The following channel-level script types can be edited: Deploy Script: This script executes once when the channel is deployed. You have access to the global / global channel / configuration maps here. Typically this script is used to perform a one-time operation for the given channel, such as loading a properties file from disk, or instantiating a database connection. Undeploy Script: This script executes once when the channel is undeployed. You have access to the global / global channel / configuration maps here. Typically

NextGen® Enterprise EHR Template Editor Help 8

DM Data Sheet List Pick Actions

The following actions are available on the Data Sheet field types: Appointments, Case Sheet, Data Grid - DM, Employer, Family Unit, Practice, Problem List, Problem Notes, Race, Relationship, Stored Procedure, Summary Data Grid, Summary Sheet, System, and Tracked Problems. For information on Double Click actions, see DM Data Grid Double Click Actions. For information on actions available for Data Flow Sheets and Orders Summary Sheets, see DM Save Actions, DM Copy Forward Actions, and DM Equipment Notify Actions. Alert Assign Field Value Assign Note Value Change Field Color Change Field Style Disable Control Enable Control Export Audio Fax Note Fax Report Generate CCD Goto Field Goto Module Grid Row Select Hide Item Launch Application Launch Template Launch Document Launch Image Lookup External Id Modify Patient Patient Education Patient Implantable Device Patient Problem PickList Pop-Up Print Graph Print Note Print Report Referral Refresh Data Grid Refresh Encounter UI Refresh Sidebar R
