Message Templates Tab

Mirth® Connect by NextGen Healthcare User Guide

Message Trees Tab

The Message Trees tab is located on the right side of the Edit Filter/Transformer views and enable you to view a tree representation of your inbound/outbound message templates set in the Message Templates tab. Note: The Outbound template tree is only visible for transformers and response transformers. When you edit a connector's filter, you will only see the Inbound template tree. Filter By Node Name/Description Create a Rule Builder Rule or Mapper Step Create a Message Builder Step Drag-and-Drop Field Values Parent topic: Edit Filter / Transformer Views Related concepts Edit Filter / Transformer Views

Mirth® Connect by NextGen Healthcare User Guide

Create New Rules/Steps

As outlined in the Message Trees Tab section, new rules / steps can be generated easily from the inbound/outbound message trees. They can also be created manually. Select the Add New Rule/Step task to the left: A new rule/step is created and added to the table. To change the type of rule/step, double-click the cell in the Type column. To change the name, double-click the cell in the Name column. Some rule/step types have names auto-generated from the properties and so do not allow editing in the table. If you are creating a filter rule, you can change the operator of the rule by selecting the AND or OR button next to the name. Parent topic: Edit Filter / Transformer Views

Mirth® Connect by NextGen Healthcare User Guide

Transformer Tasks

The following context-specific tasks are available throughout the Edit Transformer View: Task Icon Task Name Description Add New Step Adds a new transformer step to the table. If an Iterator step or any step that is a child of an Iterator is currently selected, the new step is placed at the end of the children of the most immediate parent Iterator. Otherwise, the new step will be placed at the very end of the list at the bottom of the table. Delete Step Removes the currently selected step from the table. If an Iterator step is deleted, all of its children are also deleted. Assign To Iterator Adds the selected step to a new or existing Iterator. For additional information, see Working With Iterators. Remove From Iterator Removes the selected step from its current Iterator. For additional information: Working With Iterators Import Transformer Imports a transformer from an XML file. You can choose to completely replace the current transformer, or simply append the steps to the current tab

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Channels link in the Mirth® Connect task pane at the top-left to enter the Channels View: In the Channel Table, select the channel you wish to edit, and select the Edit Channel task to the left: You can also double-click the channel row in the table. Once in the Edit Channel View, select either the Source Tab or Destinations Tab. Select a destination if necessary. Then, select on the Edit Filter, Edit Transformer, or Edit Response tasks to the left. The Edit Response task (for editing the response transformer) is only visible for destination connectors. This section is separated into the following topics: Message Templates Tab Message Trees Tab Reference Tab Create New Rules/Steps Rule/Step Table Filter Rule Properties Transformer Step Properties Response Transformers Working With Iterators View Generated Script Filter Tasks Transformer Tasks Parent topic: Edit Filter / Transformer Views

Mirth® Connect by NextGen Healthcare User Guide

Reference Tab

The Reference tab is located on the right side of the Edit Filter / Transformer Views and provides helpful variables and templates you can use within your filter rules and transformer steps. Image of the Reference tab which provides helpful variables and templates you can use within your filter rules and transformer steps. Reference List The Reference List contains code templates (both built-in and custom) that you can drag into your filter rules and transformer steps. Available Variables Parent topic: Edit Filter / Transformer Views Related concepts Reference List Available Variables

Mirth® Connect by NextGen Healthcare User Guide

Edit Data Types

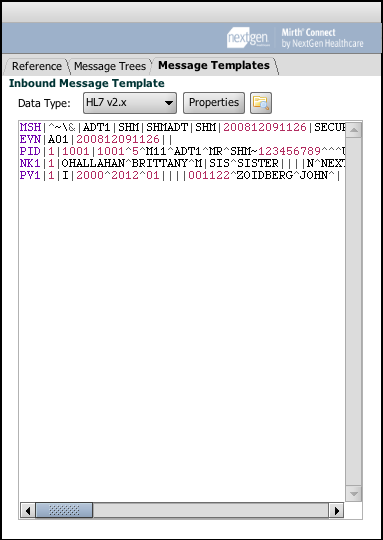

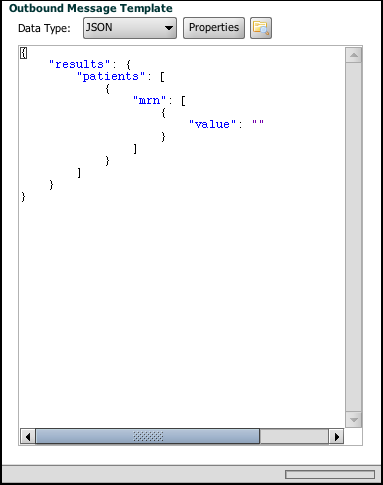

You can edit the properties for the destination transformer's inbound data type. A filter only has access to the inbound data type, while a transformer has access to both inbound and outbound data types. Additionally, when editing the destination transformer the inbound data type may not be changed, since it must remain the same as the source connector's outbound data type. However, you can still edit the properties for the destination transformer's inbound data type. An image of the Message Templates tab editing the inbound data type. When selecting the Properties button, a dialog opens allowing you to edit the various inbound or outbound properties for the data type. This is a subset of the view shown in the Set Data Types Window. For additional information, see About Data Types and Data Types. Parent topic: Message Templates Tab
