Import Transformer

Mirth® Connect by NextGen Healthcare User Guide

Transformer Tasks

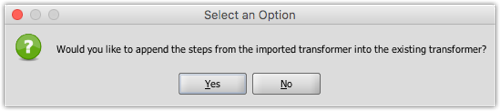

The following context-specific tasks are available throughout the Edit Transformer View: Task Icon Task Name Description Add New Step Adds a new transformer step to the table. If an Iterator step or any step that is a child of an Iterator is currently selected, the new step is placed at the end of the children of the most immediate parent Iterator. Otherwise, the new step will be placed at the very end of the list at the bottom of the table. Delete Step Removes the currently selected step from the table. If an Iterator step is deleted, all of its children are also deleted. Assign To Iterator Adds the selected step to a new or existing Iterator. For additional information, see Working With Iterators. Remove From Iterator Removes the selected step from its current Iterator. For additional information: Working With Iterators Import Transformer Imports a transformer from an XML file. You can choose to completely replace the current transformer, or simply append the steps to the current tab

Mirth® Connect by NextGen Healthcare User Guide

Import Filter

When this task is selected, you will be presented with a prompt. If Yes is chosen, the rules from the filter is added at the end of the current list at the bottom of the table. If No is chosen, all rules currently in the table are deleted and replaced with the rules from the imported filter. Parent topic: Filter Tasks

Mirth® Connect by NextGen Healthcare User Guide

Create New Rules/Steps

As outlined in the Message Trees Tab section, new rules / steps can be generated easily from the inbound/outbound message trees. They can also be created manually. Select the Add New Rule/Step task to the left: A new rule/step is created and added to the table. To change the type of rule/step, double-click the cell in the Type column. To change the name, double-click the cell in the Name column. Some rule/step types have names auto-generated from the properties and so do not allow editing in the table. If you are creating a filter rule, you can change the operator of the rule by selecting the AND or OR button next to the name. Parent topic: Edit Filter / Transformer Views

Mirth® Connect by NextGen Healthcare User Guide

Edit Filter / Transformer Views

This is where filter rules and transformer steps are configured. Although Edit Filter and Edit Transformer are different views, they are very similar and so are combined into this section. Also, the filter and transformer are actually executed together as a single script for each connector. Image of the Transformer view where rules and transformer steps are configured. Navigation Message Templates Tab The Message Templates tab enables you to edit the inbound and outbound message templates for your filter or transformer. Message Trees Tab The Message Trees tab enables you to view a tree representation of your inbound/outbound message templates set in the Message Templates tab. Reference Tab The Reference tab provides helpful variables and templates you can use within your filter rules and transformer steps. Create New Rules/Steps Rule/Step Table Filter Rule Properties Transformer Step Properties Response Transformers Working With Iterators View Generated Script Filter Tasks Transformer

Mirth® Connect by NextGen Healthcare User Guide

Message Trees Tab

The Message Trees tab is located on the right side of the Edit Filter/Transformer views and enable you to view a tree representation of your inbound/outbound message templates set in the Message Templates tab. Note: The Outbound template tree is only visible for transformers and response transformers. When you edit a connector's filter, you will only see the Inbound template tree. Filter By Node Name/Description Create a Rule Builder Rule or Mapper Step Create a Message Builder Step Drag-and-Drop Field Values Parent topic: Edit Filter / Transformer Views Related concepts Edit Filter / Transformer Views

Mirth® Connect by NextGen Healthcare User Guide

Rule/Step Table

The table in the top half of the Edit Filter / Transformer Views shows all the rules/steps you currently have configured. If you have Iterators, the elements are organized into a tree-table with the children underneath each Iterator. Column Description Enabled Determines whether the rule/step is currently enabled. When disabled, rules/steps are not executed at all, and act as if they were never there in the first place. For filters, this could change behavior as it follows the AND/OR order of operations. When all rules in a filter are disabled, the filter acts as if no rules exist, and is not executed at all. # This is the sequence number of the rule / step, starting at 0 for the first one. For child elements underneath an Iterator, this will be multiple numbers separated by a dash, to indicate the child index of each depth level. Name This is the name of the rule / step. If the type of rule / step allows user editing, you can double-click the cell to edit the name. For filter rules, y
