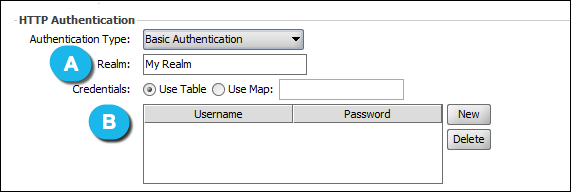

Basic HTTP Authentication

Item	Name	Description
A	Realm	The protection space for this server.
B	Use Table	Use Table: When selected, use the Credentials table (B) to populate credentials. To Use the Table Select New Double-click the Username field and enter a username for the credential. Double-click the Password field and enter a password for the credential. Note: At least one username/password pair is required for the credentials. Use Map: When selected, the Java map specified by the following variable will is used to populate credentials. The map must have String keys and either String or List<String> values.

Mirth® Connect by NextGen Healthcare User Guide

Digest HTTP Authentication

Provides Digest Authentication support for HTTP-based source connectors. Item Name Description A Realm The protection space for this server. B Algorithms Specifies the digest algorithms supported by this server. MD5: The security data A1 contains the username, realm, and password. MD5-sess: The security data A1 will also contain the server and client nonces. Both: Both MD5 and MD5-sess. C QOP Modes The quality of protection modes to support. auth: Regular authentication with client nonce and count in the digest. auth-int: Same as auth (regular authentication), but also with message integrity protection enabled. D Opaque A string of data that should be returned by the client unchanged. Velocity Variable Replacement is supported in this field. The default value, ${UUID}, means that a randomly generated universally unique identifier will be sent back on each digest challenge. E Credentials Use Table: When selected, use the Credentials table (E) to populate credentials. To Use the Table Se

Mirth® Connect by NextGen Healthcare User Guide

Choose an Authentication Type

Select an option from the drop-down window. Once an HTTP Authentication type is selected, fields associated with the type appear. For additional information on each HTTP Authentication type, select a links below. Basic HTTP Authentication Digest HTTP Authentication JavaScript HTTP Authentication Custom Java Class HTTP Authentication OAuth 2.0 Token Verification Parent topic: HTTP Authentication Settings

Mirth® Connect by NextGen Healthcare User Guide

Custom Java Class HTTP Authentication

This authentication method gives you full control by allowing you to specify your own custom-developed Authenticator implementation. Item Name Description A Class Name The fully-qualified Java class name of the Authenticator class to use. B Properties Custom string properties to pass into your class. Parent topic: HTTP Authentication Settings

Mirth® Connect by NextGen Healthcare User Guide

JavaScript HTTP Authentication

Allows you to authenticate users with a custom JavaScript script. With this script you have access to source map variables, and can choose whether to send a challenged or failure response back to the client. The default script simply allows all requests to pass. The Script field will show <Default Script Set> if the default script is currently being used. If you have made any modification to the script, the Script field will show <Custom Script Set>. Select the Script field to edit the JavaScript: This script expects either a boolean ( true to accept the request, false to send back a failure response) or an AuthenticationResult object to be returned (for additional information, see User API) . There are three types of results you can return: AuthenticationResult.Success(): The request will be accepted and processed through the channel. AuthenticationResult.Challenged(authenticateHeader): The request will not be processed through the channel. A 401 response will be sent back to the clie

Mirth® Connect by NextGen Healthcare User Guide

OAuth 2.0 Token Verification

This feature performs a GET request to an external HTTP endpoint, passing an OAuth access token as either a request header or query parameter. If the response code from this endpoint is >= 400, the request will be rejected and not processed through the channel. Item Name Description A Access Token Location Determines where the access token is located in client requests. Request Header: The field to the right specifies the HTTP header to pull the access token from. This same header will be sent in the request to the verification URL. Query Parameter: The field to the right specifies the query parameter to pull the access token from. This same parameter will be sent in the request to the verification URL. B Verification URL The HTTP URL to perform a GET request to for access token verification. If the response code is >= 400, the authentication attempt is rejected by the server, and the request will not be processed through the channel. Note: This token verification feature does not cons

Mirth® Connect by NextGen Healthcare User Guide

HTTP Authentication Settings

The HTTP Authentication Settings provide automatic user authentication with a variety of supported mechanisms. for HTTP-based source connectors. Choose an Authentication Type Basic HTTP Authentication Digest HTTP Authentication JavaScript HTTP Authentication Custom Java Class HTTP Authentication OAuth 2.0 Token Verification Parent topic: Source Tab
