Mirth® Connect by NextGen Healthcare User Guide

Edit Views

This section is separated into the following topics: Edit Channel View Edit Filter / Transformer Views Edit Global Scripts View Edit Code Templates View Edit Alert View Edit Channel View Edit Filter / Transformer Views You can use the Edit Filter view or the Transformer view to configure filter rules and transformer steps. Edit Global Scripts View The Edit Global Scripts view provides global scripts across all channels. Edit Code Templates View This view is where code templates and libraries are configured for your Mirth® Connect server. Edit Alert View Use the Edit Alert view to configure and modfiy alerts. Parent topic: Mirth Connect Administrator

Mirth® Connect by NextGen Healthcare User Guide

Alerts Tasks

The following context-specific tasks are available from the Alerts View: Task Icon Task Name Description Refresh Updates the Alerts Table. Note that the Alerts view automatically refreshes at an interval defined in the Administrator Settings. New Alert Creates a new alert and enters the Edit Alert View. Import Alert Imports an alert from an XML file on disk. Export All Alerts Exports all alerts to separate XML files on disk. Export Alert Exports a single alert to an XML file on disk. Delete Alert Removes the alert from the server. Edit Alert Enters the Edit Alert View for the selected alert. Enable Alert Activates the alert so that it will begin receiving and acting upon events. Disable Alert Deactivates the alert so that it will stop receiving and acting upon events. Parent topic: Alerts View

Mirth® Connect by NextGen Healthcare User Guide

Configuration Map

This map is also available across your entire server, across all channels and all messages. Like the global map, that means you can use the values from the configuration map in any channel, or somewhere else like an Alert. Unlike the global map however, this map is editable only from the Configuration Map Settings Tab, and is read-only from the perspective of channels / messages. The values are also String key/values only. This map is useful for global, static settings you want to persist across restarts of Mirth Connect. For example, you could store a variable like "clientAdtPort" and then use Velocity to reference that variable ("${clientAdtPort}") in a TCP Listener. That way you can export the channel on one Mirth® Connect installation, import it into a completely different installation, and then you would not have to edit anything in the channel settings as long as the configuration map is set on both instances. Get configuration map value: var value = configurationMap.get('key');

Mirth® Connect by NextGen Healthcare User Guide

Variable Maps

Throughout the Message Processing Lifecycle, your channels and messages have access to various maps. Depending on the scope, the map may only be available in the current channel/connector, or may be globally available across your entire system. These variable maps allow you to store a piece of information that can be used later (in a downstream channel, connector, or somewhere else). A common use for these variables is to provide easy drag-and-drop for connector properties. The Destination Mappings list will display all available connector/channel map variables for example. They are also used in other ways, such as populating Custom Metadata Columns. The following variable maps exist throughout Mirth® Connect: Name JavaScript Variable Get/Put Shortcut Variable Response Map responseMap $r Connector Map connectorMap $co Channel Map channelMap $c Source Map sourceMap $s Global Channel Map globalChannelMap $gc Global Map globalMap $g Configuration Map configurationMap $cfg The table above

Mirth® Connect by NextGen Healthcare User Guide

Alert Enabled Channels

This section of the Edit Alert View allows you to decide which channels and connectors may trigger an alert. You can choose to, for example, only listen for error events coming from source connectors, and ignore those coming from destination connectors. The [New Channels] option indicates that you want an alert to listen for error events on any new channels that are created for a channel after the alert was initially created. Similarly, the [New Destinations] option indicates that you want an alert to listen for error events on any new destinations that are created for a channel after the alert was initially created. Parent topic: Edit Alert View

Mirth® Connect by NextGen Healthcare User Guide

Edit Alert View

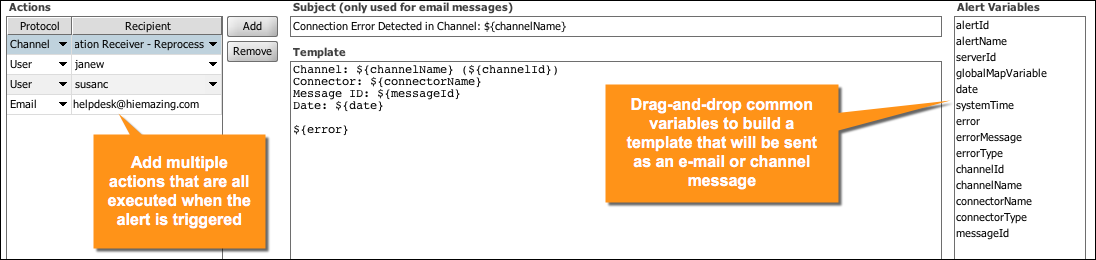

Use the Edit Alert view to configure and modfiy alerts. An alert is a process that listens for certain types of events and triggers based on configurable settings. From these triggers you can take various actions, like dispatching an e-mail to a user or specific address, or sending a message to a channel. Mirth® Connect by NextGen Healthcare comes with a built-in Error-based alerting system that listens for error events from selected channels. The Advanced Alerting extension adds on this by also including powerful metric-based alerts, escalation levels, scheduling, notification throttling, and other advanced features. The Edit Alert view is where alerts are configured / modified. Once saved, an alert will be displayed on the Alerts view, which is like a dashboard for your currently configured alerts. Image of the Edit Alert view Navigation Alert Error Types and Regex Alert Enabled Channels Alert Actions Edit Alert Tasks Parent topic: Edit Views
