Troubleshooting Connection Errors

LDAP Authorization User Guide

LDAP Connection Error: "An error occurred"

The Lightweight Directory Access Protocol (LDAP) connection error "An error occurred" indicates an error that Mirth® Connect by NextGen Healthcare does not recognize. An error occurred that Mirth® Connect by NextGen Healthcare does not recognize. Check to see if an error message was returned by the Lightweight Directory Access Protocol (LDAP) server. If so, the errors looks something like this: LDAP: error code 49 - 80090308: LdapErr: DSID-0C0903A9, comment: AcceptSecurityContext error, data 701, v1db0 Make a note of the number specified in data <number>. In the preceding example, the number is 701, which is referred to as an LDAP result code. You can view definitions of LDAP result codes at the LDAP Result Code Reference page on ldap.com. If an LDAP error message is not shown, enable debug logging so that additional information can be collected the next time the error occurs. Parent topic: Troubleshooting Connection Errors Related concepts Enable Debug Logging for LDAP Activity

LDAP Authorization User Guide

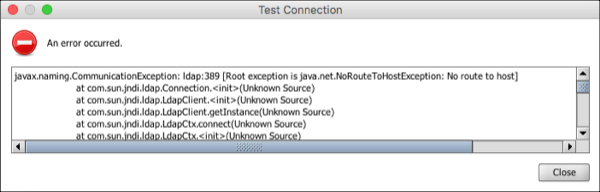

LDAP Connection Error: "An error occurred / No route to host"

The Lightweight Directory Access Protocol (LDAP) connection error "An error occurred / No route to host" can indicate an incorrect host name or a network connection problem. The address entered in the Host field may be incorrect, or Mirth® Connect by NextGen Healthcare is unable to access address on its network. The connection is being tested between the server and the LDAP server. If you are able to access the LDAP server at a given host name from your local machine, it is possible that Mirth® Connect by NextGen Healthcare does not recognize that host name. Parent topic: Troubleshooting Connection Errors

LDAP Authorization User Guide

LDAP Connection Error: "An error occurred while attempting to establish a secure connection"

The LDAP connection error "An error occurred while attempting to establish a secure connection" can result from an incorrect port number, an untrusted server certificate, or a missing server certificate. Ensure that the port number is correct. Lightweight Directory Access Protocol (LDAP) servers typically use port 389 for unencrypted communication or the STARTTLS mode and port 636 for the SSL mode. Ensure that you have imported the LDAP server certificate. This error can occur if you have enabled SSL or STARTTLS but have not yet imported the LDAP server certificate using the SSL Manager plug-in for Mirth® Connect by NextGen Healthcare. Ensure that the LDAP server certificate is trusted. Parent topic: Troubleshooting Connection Errors Related tasks Enable Encryption

LDAP Authorization User Guide

LDAP Connection Error: "com.mirth.connect.plugins.ldap.shared.Cryptor$<Encryption or Decryption>FailedException"

The LDAP connection error "com.mirth.connect.plugins.ldap.shared.Cryptor$<Encryption or Decryption>FailedException" can occur if the encryption key changed, if there are mismatched Java versions, or if Java Cryptography Extension (JCE) is not installed on your workstation. This Lightweight Directory Access Protocol (LDAP) connection error message ends with either EncryptionFailedException or DecryptionFailedException. This error can result from any of the following conditions: The Mirth® Connect by NextGen Healthcare encryption key changed or the encryption settings defined in /conf/mirth.properties have changed. The password for the admin user DN is stored by Mirth® Connect and is encrypted for security. Mirth® Connect uses an internal encryption key to encrypt the password. This internal encryption key is located in the file pointed to by the "keystore.path" setting in the mirth.properties file (the default location is /appdata/keystore.jks). If this file is changed or replaced or if

LDAP Authorization User Guide

LDAP Connection Error: "Timed out while attempting to connect to host <name> on port <number>"

The LDAP connection error "Timed out while attempting to connect to host <name> on port <number>" occurs if the LDAP server host name or port number is incorrect, or if network problems are preventing Mirth® Connect from accessing the LDAP server. Mirth® Connect by NextGen Healthcare attempted to connect to a Lightweight Directory Access Protocol (LDAP) server at the given host and port number, but did not receive a response. Usually this error means that the host name or the port is incorrect, but it could also mean that network problems are preventing Mirth® Connect from accessing the LDAP server. Parent topic: Troubleshooting Connection Errors

LDAP Authorization User Guide

LDAP Connection Error: "java.net.UnknownHostException"

The LDAP connection error "java.net.UnknownHostException" can indicate an incorrect host name or a network connection problem. The address entered in the Host field may be incorrect, or Mirth® Connect by NextGen Healthcare is unable to access this address on its network. The connection is being tested between the Mirth® Connect server and the Lightweight Directory Access Protocol (LDAP) server. If you are able to access the LDAP server at a given host name from your local machine, it is possible that Mirth® Connect does not recognize that host name. Parent topic: Troubleshooting Connection Errors
