Add UDDI Resource

You need to configure a UDDI Resource before you can select it from a Channel.

From Mirth Connect Settings > Resources > Add Resource > select Type = "UDDI Provider"
- You may name your resource accordingly, otherwise the default name is "Resource 1" or so on
Fill in UDDI Resource Settings
Configure SSL Settings & import SSL Cert, as needed.
- For Sequoia Test & Prod, use TLSv1.
Select Save.
Wait a few minutes for resource to load, select Refresh. The UDDI Business List is populated

UDDI Resource Settings:

Provider URL: A list of valid UDDI Provider URLs along with a custom option for manual input.
Polling Intervals(s): How often the UDDI resource will poll the provider for updates. Minimum value is 60 seconds. Default is 3600 (1 hour).
Description

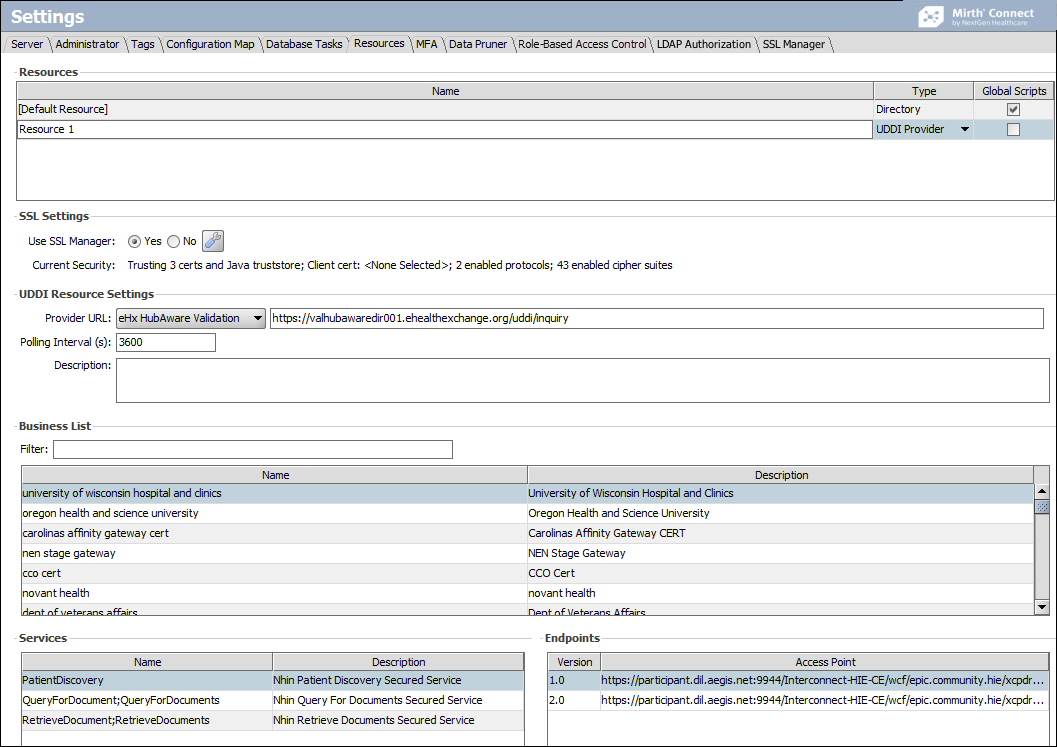

Example with loaded UDDI Resource:

The UDDI Resource Settings section of the Settings window

Add UDDI Resource

Interoperability Connector Suite User Guide

Select UDDI Resource

From any of the Interoperability Sender Connectors, you will have the option to Use UDDI. Select Yes and select the wrench icon to select your UDDI endpointThe UDDI resources dialog opens. Select your resource, Business list, Services and Endpoints, then select OK.Location URI should now be populated with the target endpoint and ready for connection. A summary line with selected Resource name, Services and Endpoint is displayed next to the wrench icon. Example with UDDI resource dialog: Example with UDDI resource dialog Example with UDDI endpoint:Example with UDDI endpoint Parent topic: UDDI

Interoperability Connector Suite User Guide

UDDI

All Interoperability Senders support UDDI ( Universal Description, Discovery, and Integration) to simplify obtaining and maintaining destination URIs. Note: Setting up a connector to use UDDI can save you time and frustration in the future. If/when UDDI resources change, any channels using those resources will automatically receive the updated resource information, that way you don't need to edit your channels when UDDI resources change. Add UDDI Resource Select UDDI Resource

Mirth® Connect by NextGen Healthcare User Guide

Navigation

Select the Channels link in the Mirth® Connect task pane at the top-left to enter the Channels View: In the Channel Table, select the channel you wish to edit, and select the Edit Channel task to the left: You can also double-click the channel row in the table. Once in the Edit Channel View, select either the Source Tab or Destinations Tab. Select a destination if necessary. Then, select on the Edit Filter, Edit Transformer, or Edit Response tasks to the left. The Edit Response task (for editing the response transformer) is only visible for destination connectors. This section is separated into the following topics: Message Templates Tab Message Trees Tab Reference Tab Create New Rules/Steps Rule/Step Table Filter Rule Properties Transformer Step Properties Response Transformers Working With Iterators View Generated Script Filter Tasks Transformer Tasks Parent topic: Edit Filter / Transformer Views

Mirth® Connect by NextGen Healthcare User Guide

Source Connector

Every channel has exactly one source connector which gets data into Mirth® Connect from an external system. The source connector is configured on the Source Tab within the Edit Channel View. In addition to the standard Connector Components, source connectors include: A Source Queue that can be enabled or disabled. When enabled, the channel acts as a store-and-forward service that can receive messages and send acknowledgements immediately to the originating system, without having to wait for the message to process through the entire channel. A Batch Processor that can be enabled or disabled. When enabled, the channel takes any incoming data and splits it into multiple messages that each proceed discretely through the channel. See Batch Processing for additional information. A Response Selector that determines what response to send back to the originating system, if applicable. You can choose to auto-generate a response based on the inbound data type of the source transformer. You can al

Mirth® Connect by NextGen Healthcare Amazon Web Services (AWS) Preferred Deployment

Install Mirth® Connect on the EC2 Instance

SSH into your newly created EC2 instance using your key pair. Edit the mirth.properties file to point to the RDS database that you created in a previous step. In the terminal, enter the following: EC2 Terminal Window $ wget http://downloads.mirthcorp.com/connect/3.11.0.b2609/mirthconnect-3.11.0.b2609-unix.tar.gz$ sudo yum update$ sudo yum install -y java-11-amazon-corretto-devel$ tar -xzf mirthconnect-3.11.0.b2609-unix.tar.gz$ cd "Mirth® Connect"$ cat docs/mcservice-java9+.vmoptions >> mcserver.vmoptions$ echo "server.id.ephemeral = true" >> conf/mirth.properties$ . /mcserver & Parent topic: Single EC2 Instance

Mirth® Connect by NextGen Healthcare User Guide

4.3.0 Upgrade Notes

Application upgrades for the 4.3.0 release. New Functionality for the Mirth® Connect Setup Wizard New features are added to the Mirth® Connect Setup Wizard that include, but are not limited to, the following: Added more information on the screens with links to the What's New, Upgrade Guide, and documentation. This helps users understand what information to enter on the screens. Added the ability to install your extensions at the time the application is installed or upgraded. This simplifies the process so that users no longer have to install extensions manually and restart the service. Added the ability to enter your license key for extensions. This will default to the license.key value from your mirth.properties file during an upgrade. Added the updated logo and a list of each dialog screens so that users know exactly where they are in the process. Resource Classloaders Load Classes Child-First By Default Resources now load classes "child-first" instead of "parent-first" by default. I
