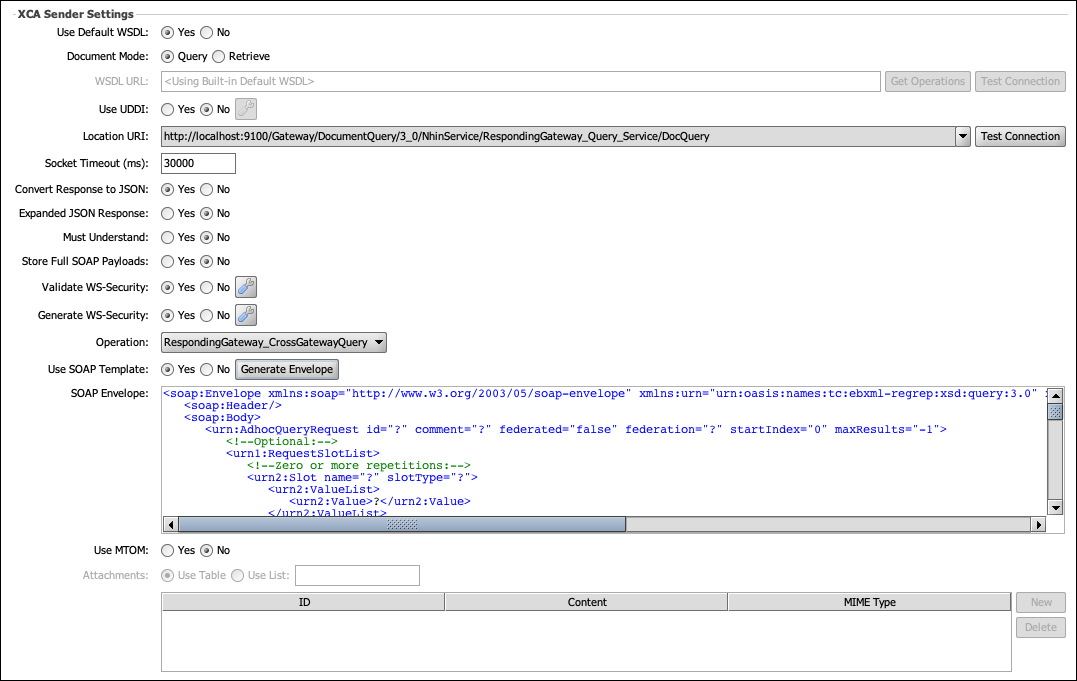

XCA Destination Connector

Interoperability Connector Suite User Guide

XDS.b Destination Connector

XDS.b Sender Settings window The XDS.b Sender supports UDDI and WS-Security Validation and Generation. Operations The XDS.b Sender includes a set of standard operations that most XDS.b web services should support. When using the Default WSDL, you can switch between Registry and Repository modes through the Document Mode toggle. You also have the option of entering a custom WSDL URL and fetching its specific set of operations which will be presented in the Operation dropdown. The Operation dropdown is used when generating the envelope. Envelope The XDS.b Sender includes useful options for generating the outbound envelope. Parent topic: XDS.b Connectors

Interoperability Connector Suite User Guide

XCPD Destination Connector

XCPD Sender Settings window The XCPD Sender supports UDDI and WS-Security Validation and Generation. Operations The XCPD Sender includes a set of standard operations that most XCPD web services should support. You also have the option of entering a custom WSDL URL and fetching its specific set of operations which will be presented in the Operation dropdown. The Operation dropdown is used when generating the envelope. Envelope The XCPD Sender includes useful options for generating the outbound envelope. Parent topic: XCPD Connectors

Interoperability Connector Suite User Guide

PIX and PDQ Destination Connectors

PIX Sender Settings window The PIXv3 and PDQv3 Senders support UDDI and WS-Security Validation and Generation. Operations The PIXv3 and PDQv3 Senders include a set of standard operations that most PIXv3 or PDQv3 web services should support. You also have the option of entering a custom WSDL URL and fetching its specific set of operations which will be presented in the Operation dropdown. The Operation dropdown is used when generating the envelope. Envelope The PIXv3 and PDQv3 Senders include useful options for generating the outbound envelope. Parent topic: PIX and PDQ Connectors

Interoperability Connector Suite User Guide

XCA Source Connector

XCA Listener Settings window The XCA Listener includes a default Query WSDL and a default Retrieve WSDL for common sets of XCA operations. These can be customized, if necessary, through the Customize WSDL toggles and Schema Definitions tables. The XCA Listener simultaneously creates endpoints for Query and Retrieve operations, for both XCA versions 2.0 and 3.0, even though only the 3.0 versions are displayed in the URL fields. Specifically, it creates the following endpoints: http(s)://<host>:<port>/Gateway/DocumentQuery/2_0/NhinService/RespondingGateway_Query_Service/DocQuery?wsdlhttp(s)://<host>:<port>/Gateway/DocumentQuery/3_0/NhinService/RespondingGateway_Query_Service/DocQuery?wsdlhttp(s)://<host>:<port>/Gateway/DocumentRetrieve/2_0/NhinService/RespondingGateway_Retrieve_Service/DocRetrieve?wsdlhttp(s)://<host>:<port>/Gateway/DocumentRetrieve/3_0/NhinService/RespondingGateway_Retrieve_Service/DocRetrieve?wsdlThe XCA Listener supports WS-Security Validation and Generation. Parent t

Interoperability Connector Suite User Guide

Destination Connector Options

Option Name Description Use Default WSDL If enabled, will use standard WSDL and operations. To use custom operations, disable this option, provide a WSDL URL, and select Get Operations. WSDL URL The full URL to the WSDL describing the web service method to be called. Select the Get Operations after entering a URL. Use UDDI Select Yes to use a UDDI provider to determine the Location URI. Select No to use the default Location URI or provide your own. See UDDI for more information. Location URI The dispatch location for the port / endpoint defined in the Connector. This field is filled in automatically when you select Get Operations and does not usually need to be changed. If left blank, the default URI defined in the WSDL will be used. Convert Response to JSON If enabled, responses will be converted from XML to JSON. Expanded JSON Response If enabled, the JSON version of the response envelope will always use an expanded format where all children are expanded into arrays and objects. The

Interoperability Connector Suite User Guide

XDS.b Source Connector

XDS.b Listener Settings window The XDS.b Listener includes a default WSDL for a common set of XDS.b operations. This can be customized, if necessary, through the Customize WSDL toggle and Schema Definitions table. The bcan be toggled between Registry and Repository, and the WSDL URL field reflects the corresponding endpoint that is created. The XDS.b Listener supports WS-Security Validation and Generation. Parent topic: XDS.b Connectors
